AEACAD460065-S698

Antennas RF Overview

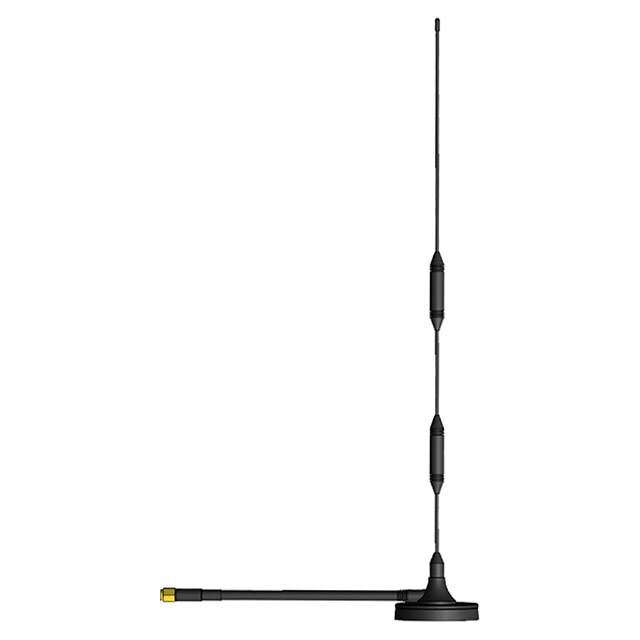

The Abracon AEACAD460065-S698 is a magnetic mount whip antenna designed for cellular communications. It operates within the frequency range of 1.71 GHz to 2.7 GHz, supporting 4G and LTE protocols. The component features a linear polarization type with a typical gain of 5 dBi. It maintains a Voltage Standing Wave Ratio (VSWR) of 2 or less across its operational bandwidth. The physical dimensions are specified as Φ65 mm diameter by 460 mm height. The unit utilizes an SMA male connector for interface connectivity.

Antennas RF Feature Summary

• Magnetic mounting base for secure attachment to metallic surfaces
• Omni-directional radiation pattern for consistent signal coverage
• Linear polarization optimized for cellular device compatibility

Antennas RF Applications

• 4G LTE vehicle communication systems
• Industrial automation telemetry units
• Embedded IoT gateway installations

Antennas RF Procurement Notes

Verify the specific ordering suffix matches the required connector type and cable length specifications. Confirm RoHS compliance status against current regulatory requirements for the target market. Ensure the SMA male interface aligns with the receiving equipment port configuration prior to integration.

Antennas RF Selection Notes

Select this model when a high-gain external antenna is required for mobile or semi-permanent installations. The magnetic base eliminates the need for drilling or permanent fixtures. Consider the 460 mm height constraint to ensure adequate clearance in the installation environment.

Antennas RF Part Context

This component belongs to Abracon's external cellular antenna portfolio. It is categorized under whip-style antennas intended for broadband wireless applications. The design focuses on robust performance in dynamic environments where fixed mounting is impractical.

Antennas RF Replacement Considerations

Consult official Abracon documentation for direct cross-reference part numbers. Verify that any substitute maintains the same SMA male interface and magnetic mounting characteristics to ensure mechanical and electrical compatibility.
