AEACAQ190012-S868

Antennas RF Overview

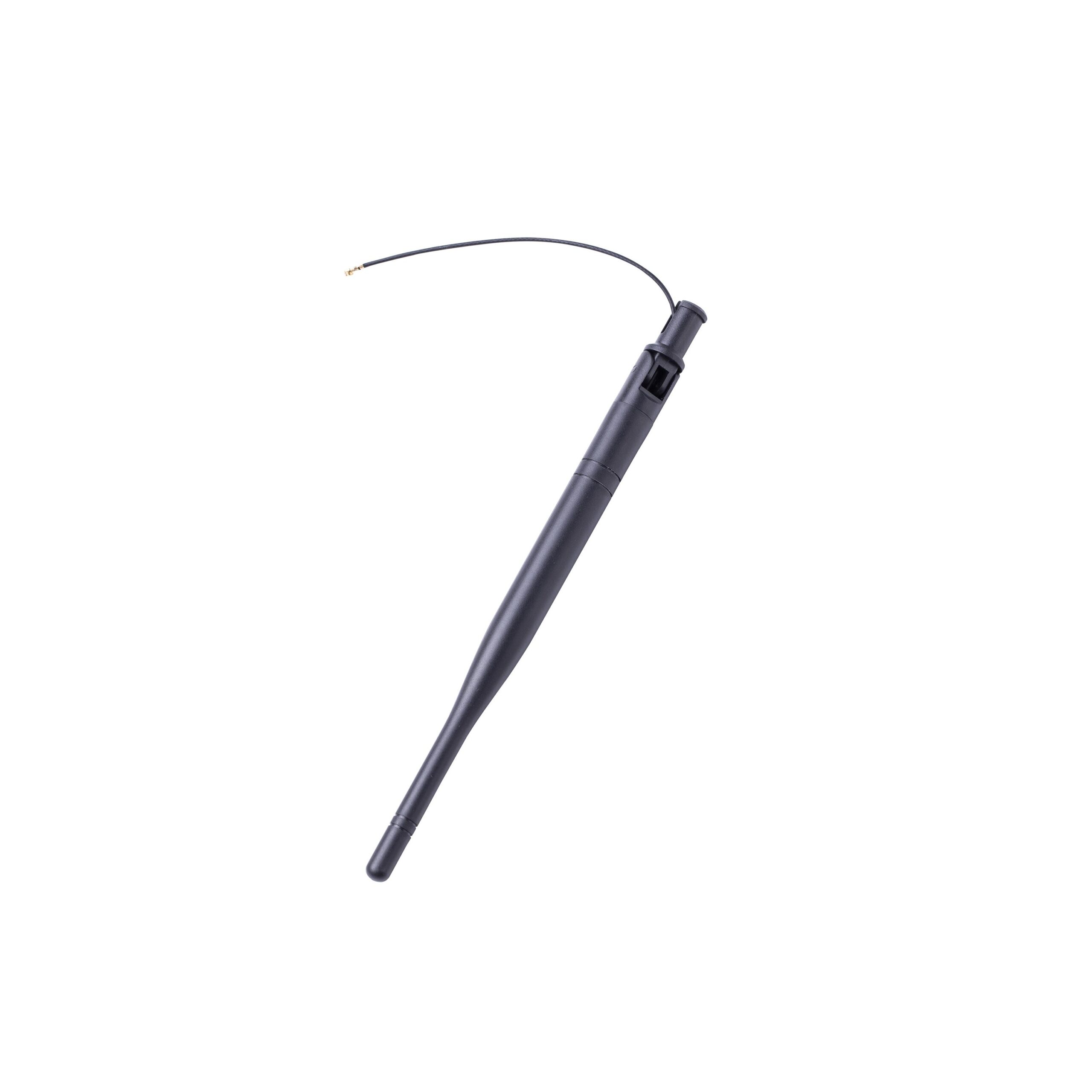

The AEACAQ190012-S868 is a linearly polarized whip antenna designed for ISM band operations, specifically optimized for the 868 MHz frequency. It features a straight whip element with dimensions of 190 mm length and 12 mm diameter. The component supports a maximum input power of 10 W and maintains a voltage standing wave ratio (VSWR) of less than or equal to 2.0. It provides a gain of 3.5 dBi and utilizes a U.FL (UMCC) or I-PEX MHF1 connector interface.

Antennas RF Feature Summary

• Knuckle-mount design for secure installation
• Optimized for LoRa and LPWAN protocols
• Linear polarization for reliable signal transmission

Antennas RF Applications

• IoT connected lighting systems
• LoRa network infrastructure
• LPWAN device connectivity
• Sigfox module integration

Antennas RF Procurement Notes

Verify that the connector type matches the host device interface requirements. Confirm the operating frequency aligns with regional regulatory standards for 868 MHz ISM bands. Ensure mechanical clearance allows for the specified 190 mm whip length during assembly.

Antennas RF Selection Notes

Select this model when a compact external antenna is required for sub-GHz ISM applications. Consider the knuckle mount style for fixed installations where space constraints limit larger antennas. Evaluate the 3.5 dBi gain against range requirements for specific IoT deployments.

Antennas RF Part Context

This part belongs to Abracon's AEACAQ190012 series of external whip antennas. The series includes variants tuned for different frequencies, such as the S915 model for 915 MHz operations. These antennas are engineered for low-power wireless communication devices requiring robust external RF solutions.

Antennas RF Replacement Considerations

The AEACAQ190012-S915 serves as a frequency-specific alternative for regions utilizing the 915 MHz ISM band. Both models share identical physical dimensions, connector types, and mounting styles, facilitating direct mechanical substitution if frequency alignment permits.
