AEACAQ190012-S915

Antennas RF Overview

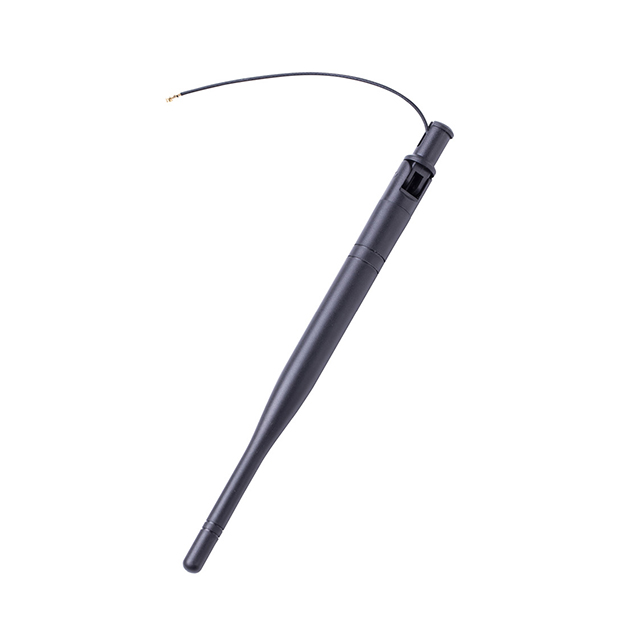

The Abracon AEACAQ190012-S915 is a passive indoor RF antenna designed for sub-GHz ISM band applications. It operates at a maximum frequency of 915 MHz with a gain of 3.5 dBi and a VSWR of 2. The unit features a linear polarization, measures Ø12.9 x 190.0 mm, and includes a 10.0 cm RG178/RF1.37 cable terminating in an I-PEX MHF1 connector. It supports protocols such as LoRa, LPWA, and SigFox.

Antennas RF Feature Summary

• Passive design optimized for indoor environments
• Low return loss characteristics ensuring efficient signal transmission
• Compact whip form factor with integrated mounting knuckle

Antennas RF Applications

• LoRa network implementations
• LPWA system integration
• SigFox device connectivity
• Sub-GHz ISM band communication modules

Antennas RF Procurement Notes

Verify the specific connector type required for your PCB layout, as this model utilizes an I-PEX MHF1 interface. Confirm that the 10 cm cable length meets your spatial constraints within the enclosure. Ensure the operating environment aligns with the indoor specification to maintain optimal performance levels.

Antennas RF Selection Notes

Select this component when a compact, high-gain solution is needed for sub-GHz frequencies. The 3.5 dBi gain provides superior range compared to standard internal antennas. The fixed cable length and connector type require careful mechanical planning during the initial hardware design phase to ensure proper fitment.

Antennas RF Part Context

This part belongs to Abracon's external antenna series, characterized by low VSWR and high gain specifications. It is engineered for reliability in wireless sensor networks and IoT devices requiring robust sub-GHz connectivity without the bulk of larger outdoor antennas.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
