AEACBA050018-SG4L2L5

Antennas RF Overview

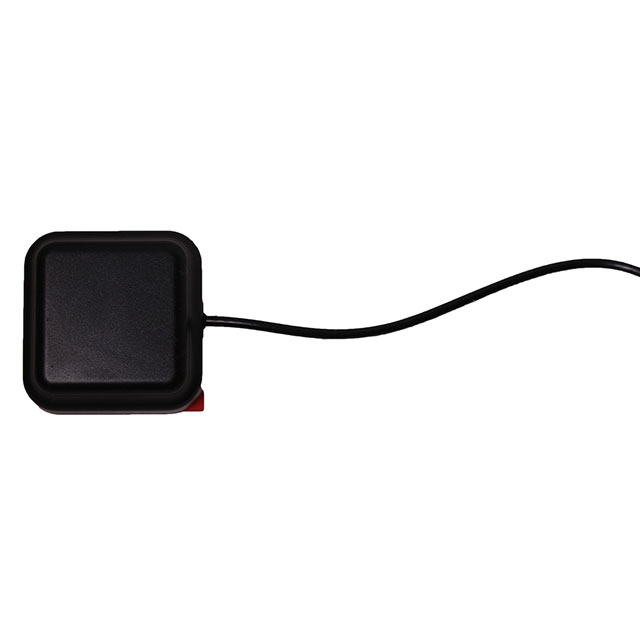

The Abracon AEACBA050018-SG4L2L5 is a square, omni-directional active GNSS antenna designed for multi-constellation reception. It supports GPS L1, L2, and L5 bands, along with Galileo, GLONASS, and BeiDou protocols. The unit operates within a frequency range of 1.176 GHz to 1.602 GHz, providing a gain of 3 dBic at a standard impedance of 50 Ohms. It features an integrated SMA male connector and includes a 3-meter RG174 cable. The device is rated IP67 for environmental protection.

Antennas RF Feature Summary

• Supports multiple global navigation satellite systems including GPS, Galileo, GLONASS, and BeiDou across L1, L2, and L5 frequencies.
• Features a square form factor with adhesive or magnetic mounting options for flexible installation.
• Includes an integrated SMA male connector attached to a 3-meter RG174 coaxial cable.
• Constructed with IP67 rating to ensure durability in harsh environmental conditions.

Antennas RF Applications

• Multi-constellation GNSS receiver modules
• Automotive navigation and telematics systems
• Maritime and aviation positioning equipment
• Surveying and mapping instrumentation

Antennas RF Procurement Notes

Verify the specific firmware version or internal LNA specifications if required for critical signal processing applications. Confirm that the 3-meter RG174 cable length meets the system layout requirements. Ensure the SMA male connector interface is compatible with the receiving board's jack. Check for any regional regulatory approvals necessary for the target deployment market.

Antennas RF Selection Notes

Select this model when multi-band support for L1, L2, and L5 signals is necessary for high-precision positioning. The IP67 rating makes it suitable for outdoor or industrial environments where moisture and dust resistance are critical. Consider the integrated cable length and connector type to simplify integration without requiring additional adapters or custom cabling solutions.

Antennas RF Part Context

This component belongs to Abracon’s active GNSS antenna portfolio, which focuses on compact, high-performance solutions for global positioning. The square design distinguishes it from traditional puck antennas, offering lower profiles for space-constrained applications. It integrates low-noise amplification directly within the antenna element to optimize signal integrity over the specified frequency range.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific configuration. Alternative models may require verification of frequency coverage, connector type, and mounting style to ensure functional compatibility with existing hardware designs.
