AEACBA059015-C3GSW

Antennas RF Overview

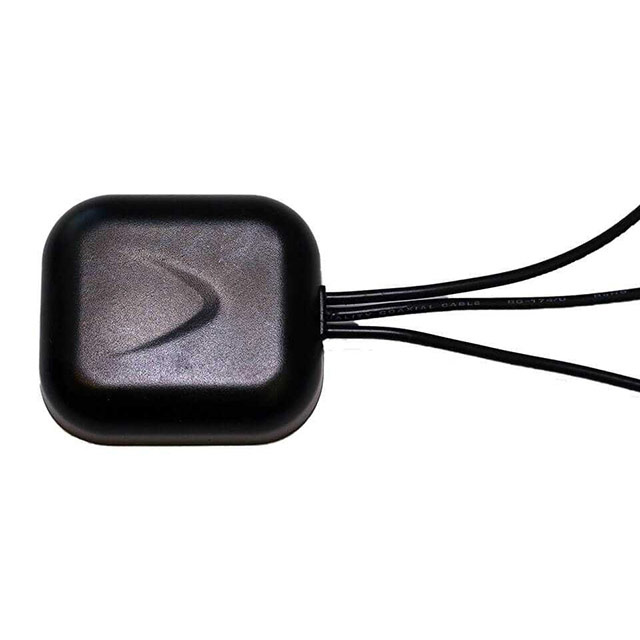

The AEACBA059015-C3GSW is an active GNSS and cellular combo antenna by Abracon LLC, designed for outdoor use with IP67 rating. It integrates GPS, GSM, and Wi-Fi capabilities into a single adhesive puck module. The unit features a 3-meter RG174 cable terminating in an SMA male connector. Key electrical specifications include a GPS center frequency of 1575.42 MHz with a bandwidth of CF±5 MHz and a VSWR of 1.5. The operating frequency range spans from 824 MHz to 2.17 GHz for cellular bands, while the Wi-Fi section operates at 2.4-2.4835 GHz with 3 dBi gain.

Antennas RF Feature Summary

• Integrates GPS, GSM, and Wi-Fi functionalities within a single compact module
• Features an IP67 rated housing suitable for harsh outdoor environments
• Includes a pre-attached 3-meter RG174 cable with SMA male connector

Antennas RF Applications

• Telematics systems
• Smart meter installations
• Transportation tracking devices

Antennas RF Procurement Notes

Verify the specific datasheet version provided by the manufacturer or authorized distributor to confirm current electrical tolerances and mechanical dimensions. Ensure that the SMA male connector interface matches the receiving equipment port. Confirm IP67 sealing integrity requirements align with the intended deployment environment before finalizing procurement orders.

Antennas RF Selection Notes

Select this component when a unified solution for positioning, cellular communication, and local wireless connectivity is required. The integrated design reduces assembly complexity compared to separate antennas. Consider the 3-meter cable length for installation flexibility. Verify compatibility with supported protocols including GPS, GLONASS, Galileo, Beidou, and GSM standards.

Antennas RF Part Context

This model belongs to the AEAC series of outdoor antennas manufactured by Abracon LLC. It represents a combinational approach to RF front-end design, merging multiple radio technologies into one physical form factor. The product line targets applications requiring robust environmental protection and multi-band signal reception without increasing the external profile of the host device.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official Abracon catalogs for direct replacements or cross-reference compatible models based on identical connector types, frequency ranges, and mounting configurations.
