AEACBK050048-C2LG

Antennas RF Overview

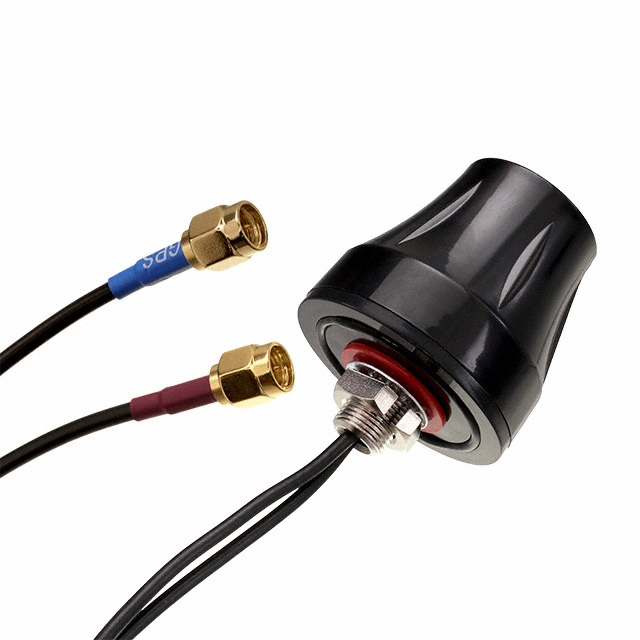

The Abracon AEACBK050048-C2LG is an active LTE/GPS screw mount combo antenna designed for outdoor use. It supports 2G, 3G, 4G, GSM, NB-IoT, and LTE protocols alongside GNSS and GPS signals. The unit features a dome mechanical form with ABS material construction. Operating frequencies range from 698 MHz to 2.69 GHz. It includes an integrated Low Noise Amplifier (LNA) providing 28 dB of gain for GPS functionality. The antenna utilizes an SMA male connector and is rated for operation within a temperature range of -40°C to 85°C.

Antennas RF Feature Summary

• Active multi-band cellular and GNSS reception capability
• Integrated LNA for enhanced signal sensitivity
• Screw mount installation method for secure attachment
• Outdoor-rated ABS housing construction

Antennas RF Applications

• Telematics systems
• Geolocation and tracking devices
• Transportation networks
• Smart city infrastructure

Antennas RF Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required connector types and cable lengths. Confirm that the active LNA power requirements align with the target system design. Check current availability status as component lifecycles may change. Ensure the SMA male interface matches existing harness specifications before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when both cellular connectivity and precise positioning are required in a single compact unit. The active design suits applications demanding high sensitivity in challenging RF environments. Consider the screw mount requirement for permanent installations where adhesive options are unsuitable. Validate frequency coverage against local network bands to ensure full protocol support.

Antennas RF Part Context

This component belongs to Abracon's external combo antenna series focused on IoT and industrial applications. It integrates multiple radio technologies into one physical module to reduce assembly complexity. The product line targets sectors requiring robust outdoor performance and reliable data transmission across various wireless standards.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available for this specific configuration.
