AEACMK0660746-SG4

Antennas RF Overview

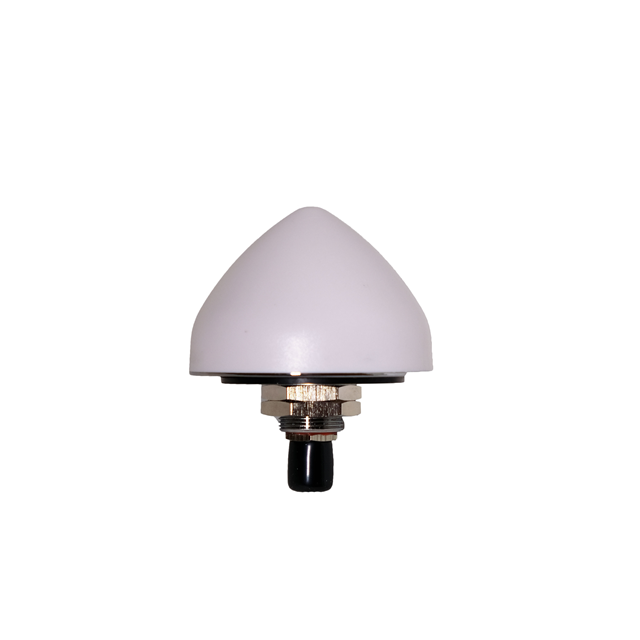

The Abracon AEACMK0660746-SG4 is a screw-mount active GNSS dome antenna designed for multi-band satellite navigation applications. It operates within the frequency range of 1.561 GHz to 1.602 GHz, with a center frequency of 1.5815 GHz. The component features a TNC female connector and maintains a 50 Ohm impedance. It supports GPS, GLONASS, Beidou, and Galileo systems. The unit offers an IP67 rating for environmental protection and functions reliably between -40°C and +85°C.

Antennas RF Feature Summary

• Supports multiple global navigation satellite systems including GPS, GLONASS, Beidou, and Galileo
• Features an active design with integrated low-noise amplification for improved signal reception
• Provides high environmental durability with an IP67 ingress protection rating
• Utilizes a robust screw-mount installation style for secure outdoor deployment

Antennas RF Applications

• GPS tracking and telemetry systems
• GLONASS positioning modules
• Beidou navigation receivers
• Galileo satellite communication devices
• Multi-constellation GNSS integration platforms

Antennas RF Procurement Notes

Verify the specific ordering suffix matches the required connector type and mounting configuration. Confirm that the active LNA specifications align with your receiver's input requirements. Ensure the TNC interface compatibility with existing cable assemblies. Check regional availability as distribution may vary by location. Validate environmental ratings against operational site conditions.

Antennas RF Selection Notes

Choose this model when multi-constellation support is required for enhanced positioning accuracy. Select for applications demanding high environmental resistance in outdoor or mobile settings. Consider the active design benefits for weak signal environments where passive antennas may underperform. Ensure mechanical fit for the designated screw-mount surface area.

Antennas RF Part Context

This component belongs to Abracon's outdoor GNSS antenna portfolio, specifically engineered for reliable satellite navigation performance. It complements other active dome antennas in the series, offering standardized interfaces and broad frequency coverage. The product line targets industrial, automotive, and marine sectors requiring precise geolocation data across diverse global satellite networks.

Antennas RF Replacement Considerations

Cross-reference with other Abracon active GNSS dome antennas featuring TNC connectors. Verify equivalent frequency ranges covering 1.561 GHz to 1.602 GHz. Ensure compatible mounting styles and IP ratings for direct substitution.
