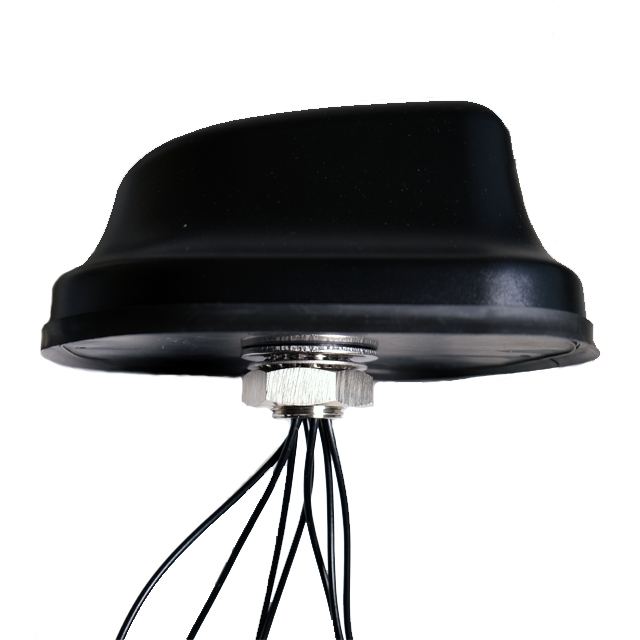

AECR1808A20S-3000S

$75.42

Description：RF ANT 7IN1 4X5G/ 2XWIFI/ GNSS D
Series：AECR
Mfr：Abracon LLC
Package：Bulk

SKU:7532c58174c2 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AECR1808A20S-3000S is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 7IN1 4X5G/ 2XWIFI/ GNSS D. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AECR1808A20S-3000S

Description：RF ANT 7IN1 4X5G/ 2XWIFI/ GNSS D
Series：AECR
Mfr：Abracon LLC
Package：Bulk
RF Family/Standard：Cellular, Navigation, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：1.5835GHz, 2.44175GHz, 3.3GHz, 5.4125GHz
Frequency Range：1.561GHz ~ 1.606GHz, 2.4GHz ~ 2.4835GHz, 600MHz ~ 6GHz, 4.9GHz ~ 5.925GHz
Antenna Type：Dome
Number of Bands：4
VSWR：2, 2.5, 4
Return Loss：-
Gain：3dBi, 4dBi, 4dBi, 4dBi
Features：Cable - 3m
Termination：SMA Male (7)
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Screw Mount
Height (Max)：3.346" (85.00mm)
Applications：4G, 5G, Beidou, GLONASS, GNSS, GPS, LTE, Wi-Fi
Power - Max：10 W

Antennas RF datasheet and documents for AECR1808A20S-3000S

AECR1808A20S-3000S

Antennas RF Overview

The Abracon AECR1808A20S-3000S is a multiprotocol RF antenna module designed for outdoor deployment. It supports cellular bands including LTE, NBIoT, 4G, and 5G, alongside GNSS constellations such as GPS, GLONASS, Beidou, and WiFi. The unit features an SMA male connector with screw mount installation. It operates within a frequency range starting at 600 MHz up to 6 GHz, with a maximum operating temperature of +85 C. The device has an IP67 rating and measures 189 mm in length.

Antennas RF Feature Summary

Supports multiple wireless protocols including cellular, GNSS, and WiFi
Outdoor-rated construction with IP67 ingress protection
Integrated SMA male connector for secure cable attachment

Antennas RF Applications

IoT gateways requiring multi-band connectivity
Smart city infrastructure nodes
Industrial telemetry systems

Antennas RF Procurement Notes

Verify the specific frequency band support required for your target region against the official datasheet specifications. Confirm mechanical mounting requirements match the screw mount design. Ensure environmental conditions stay within the stated temperature limits. Check for updated documentation regarding protocol compatibility updates from the manufacturer before finalizing procurement decisions.

Antennas RF Selection Notes

Select this component when a single integrated solution is needed for diverse communication standards. It eliminates the need for separate antennas for cellular and positioning systems. Consider the physical dimensions and mounting style for enclosure integration. Verify that the SMA interface matches existing cabling infrastructure in the design.

Antennas RF Part Context

This model belongs to Abracon's outdoor antenna portfolio, focusing on converged connectivity solutions. It addresses the demand for compact, ruggedized hardware in remote or exposed environments. The product line emphasizes reliability in harsh conditions while supporting evolving network technologies.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer for direct equivalents if this specific model is unavailable.
