AECS1806D07ZS-3000S

Antennas RF Overview

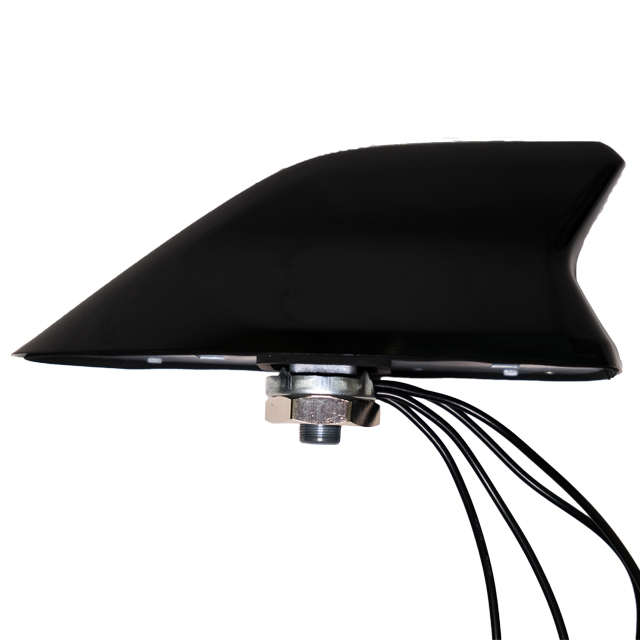

The Abracon AECS1806D07ZS-3000S is an automotive-grade, multi-protocol sharkfin antenna designed for integrated connectivity. It supports LTE (including NB-IoT), Wi-Fi (2.4 GHz), and GNSS protocols including GPS, GLONASS, BeiDou, Galileo, and QZSS. The unit features a screw-mount installation method with an IP67 rating for environmental protection. Connectivity is provided via one FME female connector and three SMA male connectors. The assembly includes a 3-meter UL-94 rated cable to facilitate routing within vehicle structures.

Antennas RF Feature Summary

• Integrates cellular, Wi-Fi, and global navigation satellite system capabilities into a single compact sharkfin housing.
• Provides active GNSS reception supporting multiple constellations including GPS, GLONASS, BeiDou, Galileo, and QZSS.
• Features an IP67-rated enclosure suitable for harsh outdoor and automotive environments.
• Utilizes a secure screw-mount design for stable attachment to vehicle roofs.

Antennas RF Applications

• Smart City infrastructure nodes requiring multi-band wireless communication
• Geolocation tracking systems in connected vehicles
• Automotive telematics units needing integrated LTE and GNSS signals
• IoT gateways operating in exposed outdoor environments

Antennas RF Procurement Notes

Verify the specific connector configuration matches the target harness, as this model combines FME and SMA interfaces. Confirm that the 3-meter cable length aligns with the physical routing constraints of the installation site. Ensure the mounting surface is compatible with the screw-mount mechanism to maintain the IP67 seal integrity during operation.

Antennas RF Selection Notes

Select this component when a unified solution for cellular, Wi-Fi, and positioning is required to reduce part count and installation complexity. Consider the active GNSS capability if high-sensitivity location data is necessary. Evaluate the IP67 rating against local environmental conditions to ensure long-term durability without additional protective enclosures.

Antennas RF Part Context

This model belongs to Abracon's AECS series of automotive sharkfin antennas. These components are engineered to replace multiple discrete antennas, offering a streamlined aesthetic and simplified wiring architecture for modern vehicle designs. The series focuses on providing comprehensive RF coverage for connected car technologies.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers: None identified in available documentation.
