AECW0801C03S-3000S

Antennas RF Overview

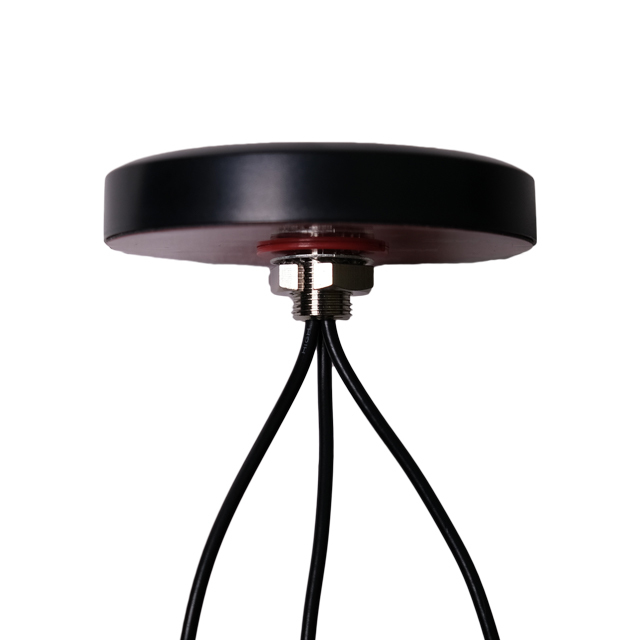

The AECW0801C03S-3000S is a multiprotocol external antenna supporting LTE, Wi-Fi, and GNSS (GPS, GLONASS, Galileo, Beidou). It features a screw-mount puck design with an IP67 rating for environmental protection. The unit includes a 3000 mm LMR-100 cable terminating in three SMA male connectors. Operating frequencies span 698MHz–960MHz, 1.561GHz–1.602GHz, and 1.71GHz–2.69GHz. It functions within a temperature range of -40°C to +85°C.

Antennas RF Feature Summary

• Integrates cellular, navigation, and wireless LAN protocols into a single hardware unit
• Provides sealed IP67 enclosure for reliable outdoor deployment
• Utilizes low-loss LMR-100 cabling to maintain signal integrity over distance

Antennas RF Applications

• Vehicle telematics and tracking systems
• Industrial IoT gateways requiring multi-standard connectivity
• Maritime communication equipment
• Remote monitoring stations in harsh environments

Antennas RF Procurement Notes

Verify the specific connector configuration and cable length requirements against system integration needs before ordering. Confirm that the SMA male interface matches the receiving device ports. Ensure the mounting surface supports the screw-mount mechanism and provides adequate grounding. Check regional availability as distribution status may vary by location.

Antennas RF Selection Notes

Select this model when a unified solution for cellular, satellite navigation, and Wi-Fi is required without separate component integration. Consider the 3-meter cable length for flexible placement relative to the host device. Evaluate the screw-mount option if permanent, vibration-resistant installation is preferred over adhesive alternatives.

Antennas RF Part Context

This component belongs to the Abracon AEC series of external antennas. It is designed as a commercial off-the-shelf (COTS) solution for applications demanding robust RF performance across multiple frequency bands. The product is actively manufactured and supported by Abracon LLC.

Antennas RF Replacement Considerations

The datasheet references part number AECW0801C09S-3000S regarding packaging variations. Verify if alternative packaging or minor physical differences exist between these identifiers before substitution.
