AETC1302XS-SS

Antennas RF Overview

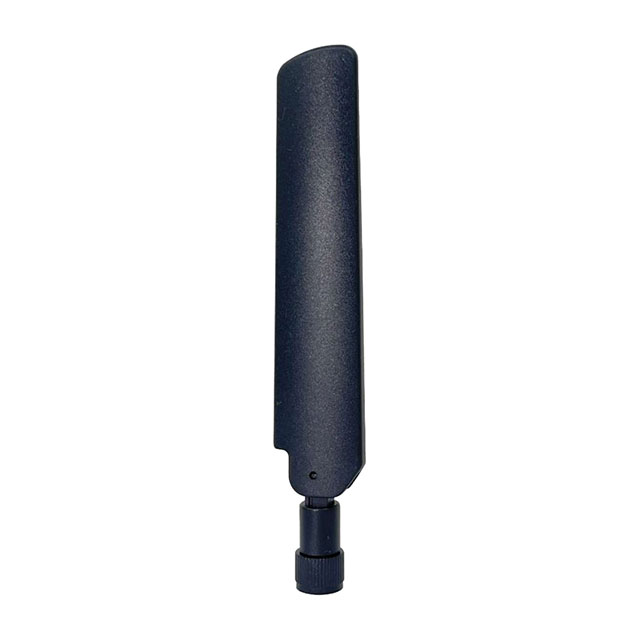

The AETC1302XS-SS is a multi-band whip antenna manufactured by Abracon LLC, designed for wireless communication applications. It supports LTE, 4G, 5G, Bluetooth, Wi-Fi, WLAN, and Zigbee protocols. The antenna operates across a frequency range of 617 MHz to 7.15 GHz, covering bands centered at 788.5 MHz, 1.513 GHz, and 2.2 GHz. Key electrical specifications include a gain of 2 dBi, an impedance of 50 Ohms, and a maximum power rating of 500 mW. The physical height is 135.5 mm.

Antennas RF Feature Summary

• Supports multiple wireless standards including LTE, 4G, 5G, Bluetooth, Wi-Fi, WLAN, and Zigbee
• Wide frequency coverage from 617 MHz to 7.15 GHz
• Utilizes SMA Male connector for secure attachment

Antennas RF Applications

• IoT devices requiring multi-protocol connectivity
• Industrial automation systems
• Smart home gateways

Antennas RF Procurement Notes

Verify the specific datasheet version when ordering, as manufacturer updates may occur. Confirm that the SMA Male connector type matches your host device interface requirements. Ensure the operating environment accommodates the 135.5 mm height dimension. Cross-reference the part number with official Abracon documentation to confirm current production status and compliance certifications before finalizing procurement.

Antennas RF Selection Notes

Select this component when a single external antenna solution is required to support diverse wireless technologies simultaneously. The 50 Ohm impedance ensures compatibility with standard RF circuits. Consider the mechanical mounting constraints due to the whip design and specified height. This model is suitable for applications needing broad frequency coverage without requiring multiple distinct antenna elements.

Antennas RF Part Context

This part belongs to Abracon's external antenna portfolio, specifically engineered for compact wireless modules. It serves as a replacement or upgrade for internal antennas in space-constrained designs where higher gain and broader bandwidth are necessary. The product line focuses on simplifying RF design by integrating multiple band support into a single physical unit.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult official Abracon documentation for direct replacements or pin-compatible alternatives.
