AETC2002XS-SS

Antennas RF Overview

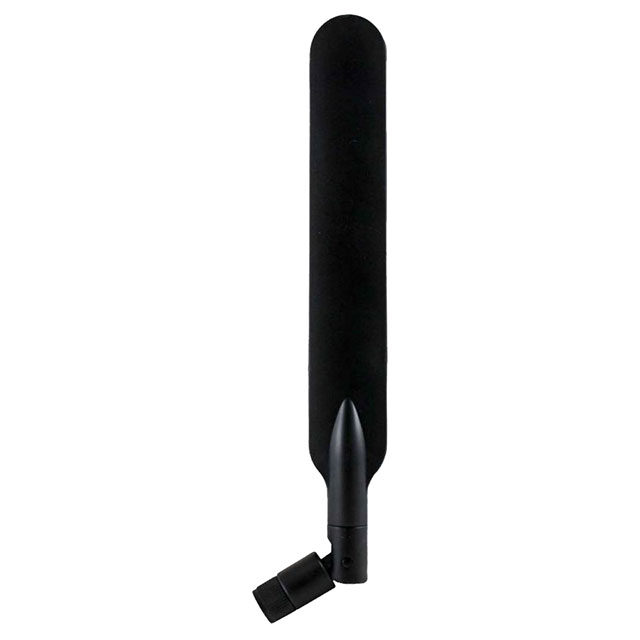

The AETC2002XS-SS is a wideband RF whip antenna manufactured by Abracon LLC, designed for multi-standard wireless communication applications. It operates across a frequency range of 617 MHz to 7.15 GHz, supporting standards including Bluetooth, Cellular (4G/LTE/5G), WiFi, WLAN, and ZigBee. The component features a 2.5 dBi gain, 50 Ohm impedance, and utilizes an SMA male connector for mounting. Its physical height is specified at 205 mm, providing a compact solution for high-performance data transmission in diverse IoT and mobile device environments.

Antennas RF Feature Summary

• Supports multiple wireless protocols including Bluetooth, Cellular, WiFi, and ZigBee within a single wideband design
• Utilizes an SMA male connector for secure mechanical and electrical interface
• Engineered for high-performance short-range high-precision data transmission

Antennas RF Applications

• IoT devices requiring multi-band connectivity
• Mobile phones and handheld terminals supporting 4G/5G and Wi-Fi 6E
• Industrial equipment utilizing Bluetooth and ZigBee protocols
• Wearable technology with space-constrained antenna requirements

Antennas RF Procurement Notes

Verify the specific ordering suffix and package configuration against the manufacturer's latest datasheet before procurement. Ensure that the SMA connector type matches the host board interface requirements. Confirm active status and lead times directly with authorized distributors, as availability may vary by region. Cross-reference the part number with official Abracon documentation to avoid counterfeit components.

Antennas RF Selection Notes

Select this antenna when a single component must support multiple frequency bands from sub-GHz to 7.15 GHz. Consider the 205 mm height constraint during mechanical design integration. Evaluate the 2.5 dBi gain against system link budget requirements for cellular and WiFi operations. Ensure the 50 Ohm impedance matches the RF front-end circuitry to minimize signal reflection and maximize transmission efficiency.

Antennas RF Part Context

This component belongs to the AETC series of RF antennas from Abracon LLC, which focuses on passive components for wireless communication. The series includes various chip and whip antennas tailored for UWB, GNSS, and multi-standard applications. The AETC2002XS-SS specifically addresses the need for compact, high-gain solutions in modern mobile and IoT devices requiring simultaneous connectivity across cellular and local area networks.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Abracon's official cross-reference guides or contact technical support for compatible alternatives if this specific model becomes unavailable.
