AFCL060247DJT2T

Overview

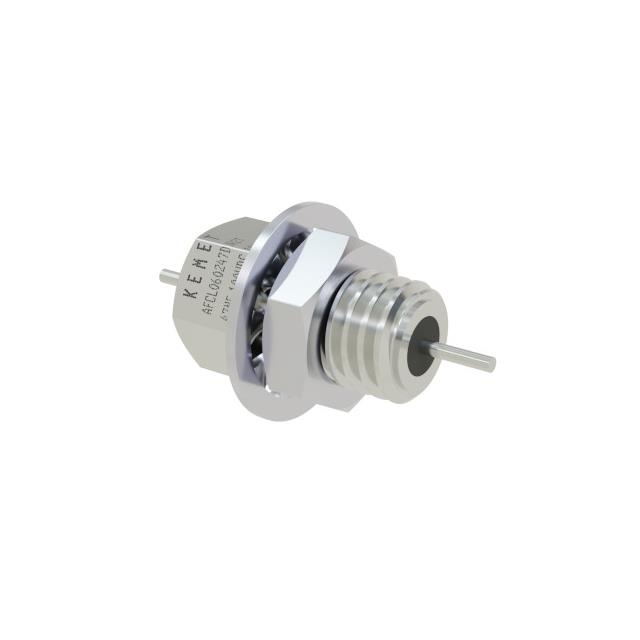

The KEMET AFCL060247DJT2T is a feed-through capacitor with a capacitance of 0.047 µF and a voltage rating of 100 V. It features an axial bushing package with two solder eyelets for panel mounting. The component exhibits a maximum DC resistance of 6 mΩ and supports a current capacity of 10 A. It is designed for high-frequency noise suppression in power line applications.

Feature Summary

• Feed-through design for effective electromagnetic interference filtering
• Axial bushing configuration with dual solder eyelets for secure panel installation
• Capable of handling high continuous current loads

Applications

• Power supply input filtering
• High-frequency noise suppression on DC lines
• Industrial equipment EMI mitigation

Procurement Notes

Verify the exact suffix and revision level against the manufacturer's latest documentation to ensure compatibility with specific panel thicknesses and termination requirements. Confirm availability status as distribution channels may list obsolete or discontinued stock. Cross-reference the datasheet for precise mechanical dimensions to validate fit within the intended enclosure layout before finalizing procurement orders.

Selection Notes

Select this component when a robust, panel-mount solution is required for attenuating high-frequency noise on power lines carrying significant current. The axial bushing style facilitates direct integration into metal chassis panels. Ensure the operating voltage and current ratings exceed the system's maximum expected values to maintain reliability and safety margins during continuous operation.

Part Context

This part belongs to KEMET's AFCL series of feed-through capacitors, which are engineered for demanding EMI/RFI suppression tasks. These components utilize specialized internal structures to provide low impedance paths for high-frequency noise while maintaining signal integrity on power conductors. The series is widely recognized for its durability and performance in industrial and automotive environments.

Replacement Considerations

Public sources indicate this product is no longer manufactured. Verify if alternative series from KEMET or other manufacturers offer compatible electrical specifications and mechanical footprints for direct replacement.
