AGGBP.25A.07.0060A

Antennas RF Overview

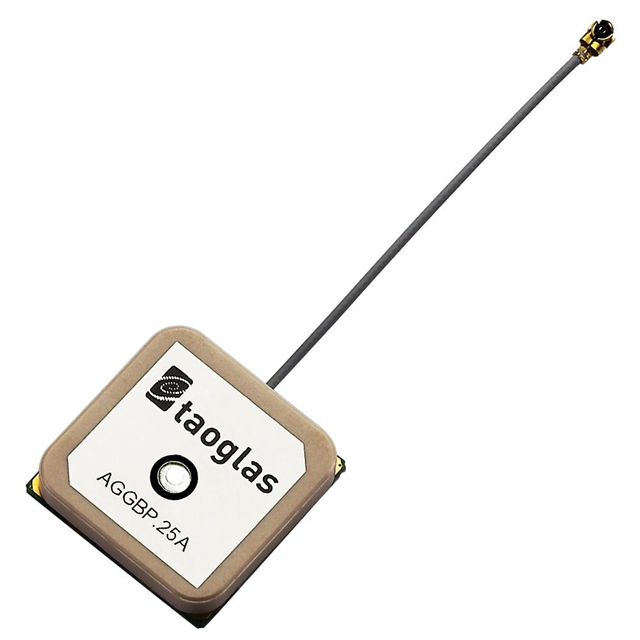

The Taoglas AGGBP.25A.07.0060A is a ceramic patch RF antenna designed for GNSS applications, supporting GPS, GLONASS, Galileo, and BeiDou systems. It operates within the frequency range of 1.575GHz to 1.602GHz. The component features an integrated Low Noise Amplifier (LNA) and filter, providing -1dBi gain with a Voltage Standing Wave Ratio (VSWR) of 2. It utilizes U.FL (UMCC) or I-PEX MHF1 connectors and is manufactured in a surface-mount package measuring 25.1mm x 25.1mm x 7.9mm.

Antennas RF Feature Summary

• Integrated active circuitry including a one-stage LNA and filter for signal enhancement
• Multi-constellation support for GPS, GLONASS, Galileo, and BeiDou navigation systems
• Compact ceramic patch construction suitable for space-constrained surface-mount designs

Antennas RF Applications

• GPS receiver modules
• GLONASS tracking devices
• Galileo navigation receivers
• BeiDou positioning systems

Antennas RF Procurement Notes

Verify the specific connector type required, as the part supports both U.FL and I-PEX MHF1 interfaces. Confirm that the standard 16-week lead time aligns with project schedules. Ensure compatibility with RoHS3 standards if environmental compliance is mandatory for the target assembly. Cross-reference the manufacturer part number against distributor listings to confirm current availability status.

Antennas RF Selection Notes

Select this component when multi-band GNSS reception is required within a compact form factor. The integrated LNA simplifies design by reducing external component count. Verify that the -1dBi gain meets system sensitivity requirements. Ensure the host PCB layout accommodates the 25.1mm square footprint and 7.9mm height constraints for proper surface-mount installation.

Antennas RF Part Context

This model belongs to the AGGBP.25 series of active patch antennas from Taoglas Limited. It is engineered for internal integration into portable and embedded electronic devices requiring precise satellite navigation capabilities. The series emphasizes high directivity and impedance matching for reliable signal acquisition across multiple global navigation satellite constellations.

Antennas RF Replacement Considerations

The AGGBP.SLS.25A.07.0060A is a documented variant within the same product family. Differences may exist in LNA gain specifications and physical dimensions. Verify mechanical fit and electrical performance equivalence before substitution. Consult official datasheets for detailed comparison of interface and mounting requirements.
