AGGBP.SL.25A.07.0060A

Antennas RF Overview

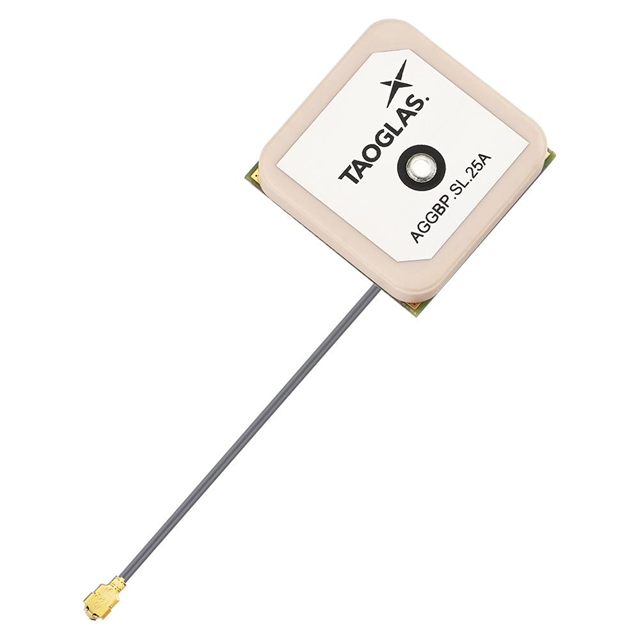

The Taoglas AGGBP.SL.25A.07.0060A is an active GNSS patch antenna designed for embedded navigation applications. It supports GPS, GLONASS, Galileo, and BeiDou constellations using a ceramic patch element. The module integrates a low-noise amplifier with 14.5 dB gain to enhance signal reception sensitivity. It features a 60 mm RF1.13 cable terminated with a U.FL connector for compact integration. The antenna provides excellent out-of-band rejection to minimize interference from adjacent frequency bands.

Antennas RF Feature Summary

• Supports full coverage of GPS, GLONASS, Galileo, and BeiDou satellite navigation systems
• Integrates a 14.5 dB gain low-noise amplifier for improved signal acquisition
• Utilizes a ceramic patch element for robust structural performance
• Includes front-end filtering capabilities to reduce out-of-band interference

Antennas RF Applications

• Wearable technology devices requiring precise location tracking
• Automotive navigation and telematics systems
• IoT modules for asset tracking and monitoring

Antennas RF Procurement Notes

Verify the specific suffix codes against the manufacturer's current datasheet to ensure compatibility with required cable lengths and connector types. Confirm RoHS compliance status and moisture sensitivity levels prior to assembly. Cross-reference the part number with official Taoglas documentation to validate recent design revisions or obsolescence notices.

Antennas RF Selection Notes

Select this component for applications demanding multi-constellation support in space-constrained environments. The integrated LNA reduces the need for external amplification stages. Ensure the host PCB layout accommodates the U.FL connector footprint and maintains clearance for the patch element. Evaluate the 60 mm cable length against system mechanical constraints before finalizing the design.

Antennas RF Part Context

This model belongs to the AGGBP.SL series of active GNSS antennas from Taoglas Limited. The series focuses on providing high-performance navigation solutions for embedded systems. The SL designation typically indicates a slim profile form factor suitable for modern portable electronics. This specific variant includes pre-defined cable and connector specifications for immediate integration.

Antennas RF Replacement Considerations

Consult the official Taoglas substitution guide for verified equivalent models. Consider variants within the AGGBP.SL family that offer different cable lengths or connector options if mechanical adjustments are required. Verify that any substitute maintains the same multi-constellation support and LNA gain specifications.
