AHP2258.07.0060A is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is ACTIVE GNSS L1/L2 PATCH ANTENNA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AHP2258.07.0060A
- Description：ACTIVE GNSS L1/L2 PATCH ANTENNA
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：-
- Frequency Group：-
- Frequency (Center/Band)：-
- Frequency Range：-
- Antenna Type：-
- Number of Bands：-
- VSWR：-
- Return Loss：-
- Gain：-
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：-
- Height (Max)：-
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for AHP2258.07.0060A
Antennas RF Overview

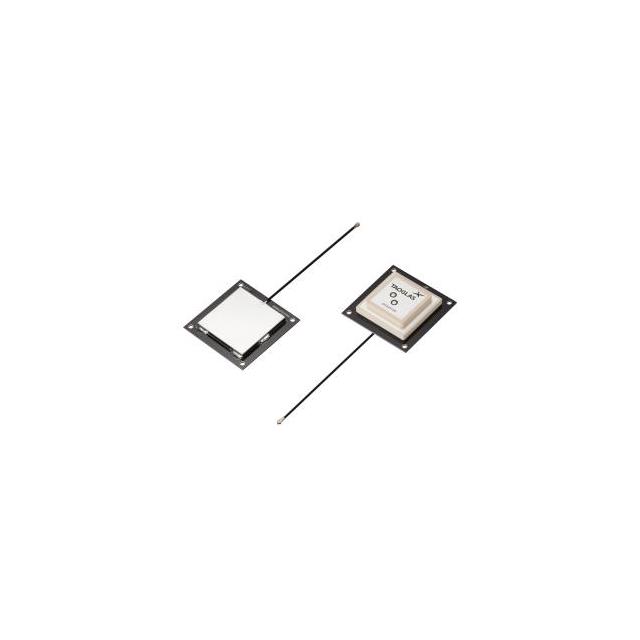

The Taoglas AHP2258.07.0060A is an active GNSS L1/L2 patch antenna designed for high-precision positioning applications. It operates within the frequency range of 1.215 GHz to 1.61 GHz, supporting multiple global navigation satellite systems including GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS. The component features a 50 Ohm impedance and includes a built-in Low Noise Amplifier (LNA). It is equipped with a 60mm cable terminating in an IPEX U.FL connector. The unit has a maximum operating temperature of +85°C and physical dimensions of 35 mm in length.
Antennas RF Feature Summary
- Multi-band support for L1 and L2 GNSS frequencies
- Integrated Low Noise Amplifier for signal enhancement
- Directional patch design for improved accuracy
Antennas RF Applications
- High precision GNSS positioning modules
- Surveying and mapping equipment
- Geospatial data collection devices
Antennas RF Procurement Notes
Verify that the specific ordering suffix matches the required cable length and connector type. Confirm that the system interface supports the IPEX U.FL connection standard. Ensure environmental ratings meet the operational temperature requirements of the target application environment before finalizing procurement.
Antennas RF Selection Notes
Select this model when dual-band L1/L2 reception is required for centimeter-level accuracy. Consider the integrated LNA for weak signal environments. Verify compatibility with the host device's RF front-end and connector space constraints. Evaluate the directional radiation pattern against omni-directional alternatives based on mounting orientation needs.
Antennas RF Part Context
This part belongs to the Taoglas AHP2258 series of active GNSS antennas. The series focuses on high-performance directional solutions for multi-constellation navigation. The specific model integrates the antenna element, LNA, and connector into a compact patch form factor suitable for embedded integration.
Antennas RF Replacement Considerations
Consult official Taoglas documentation for direct cross-reference part numbers. Verify electrical parameters such as gain, impedance, and frequency range match exactly. Ensure mechanical footprint and connector type are compatible with existing PCB layouts.
