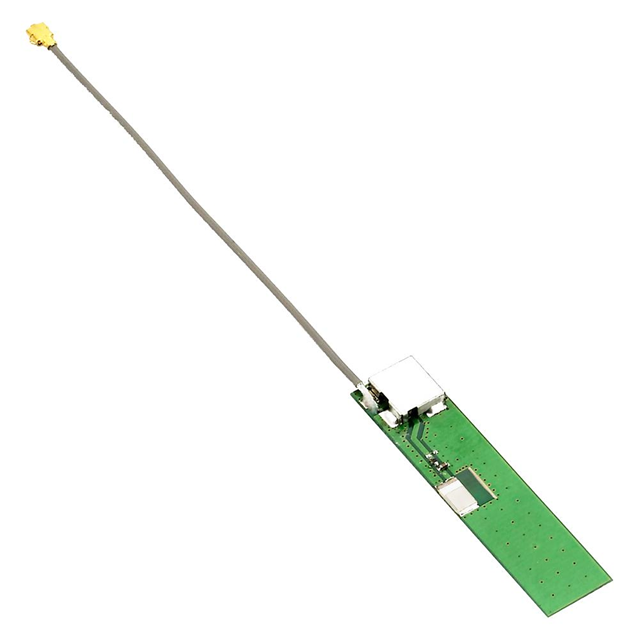

ALA.01.07.0095A is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is RF ANT 1.575GHZ PCB TRACE IPEX. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ALA.01.07.0095A
- Description：RF ANT 1.575GHZ PCB TRACE IPEX
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.575GHz
- Frequency Range：1.54GHz ~ 1.61GHz
- Antenna Type：PCB Trace
- Number of Bands：1
- VSWR：2
- Return Loss：-10dB
- Gain：3.1dBi
- Features：LNA, Filter
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive, Chassis Mount
- Height (Max)：0.020" (0.50mm)
- Applications：GPS
- Power - Max：-
Antennas RF datasheet and documents for ALA.01.07.0095A
Antennas RF Overview
The Taoglas ALA.01.07.0095A is a ceramic active loop GNSS antenna designed for GPS and Galileo systems. It operates at a center frequency of 1.57542 GHz with a maximum frequency of 1.576443 GHz. The component features linear polarization, a gain of 3.1 dBi, and an impedance of 50 Ohms. It utilizes a U.FL connector and achieves a VSWR of 2. The unit measures 45 mm in length and supports a maximum operating temperature of +85 C.
Antennas RF Feature Summary
- Active ceramic loop construction for enhanced signal reception
- Integrated U.FL connector for direct PCB integration
- Optimized for GPS and Galileo satellite navigation protocols
Antennas RF Applications
- GPS Navigation Systems
- Galileo Position Tracking
- GNSS Receiver Modules
Antennas RF Procurement Notes
Verify the specific connector type and mechanical dimensions against the official datasheet to ensure compatibility with the target PCB layout. Confirm that the active antenna bias requirements align with the receiving circuit design. Check for any specific handling instructions regarding the ceramic substrate integrity during assembly.
Antennas RF Selection Notes
Select this model when a compact active solution for L1 band navigation is required. The integrated U.FL connector simplifies routing compared to wire antennas. Ensure the application environment stays within the specified thermal limits and that the 50-ohm system impedance matches the downstream RF chain components for optimal performance.
Antennas RF Part Context
This part belongs to the Taoglas GNSS antenna portfolio, specifically targeting applications requiring precise positioning via GPS and Galileo constellations. As an active ceramic loop module, it differs from passive variants by incorporating internal amplification to improve sensitivity in challenging signal environments.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative models.
