ALPHA16/1M/SMAM/S/RP/17

$13.29

Description：RF ANT 2.4GHZ BLADE RP-SMA MALE
Series：ALPHA 16
Mfr：Siretta Ltd
Package：Bulk

SKU:64f8cae96c6c Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 2.4GHZ BLADE RP-SMA MALE
Series：ALPHA 16
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Blade
Number of Bands：1
VSWR：2
Return Loss：-
Gain：2dBi
Features：-
Termination：RP-SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.079" (2.00mm)
Applications：Bluetooth, WLAN, Zigbee™
Power - Max：-

Download product information

ALPHA16/1M/SMAM/S/RP/17

Overview

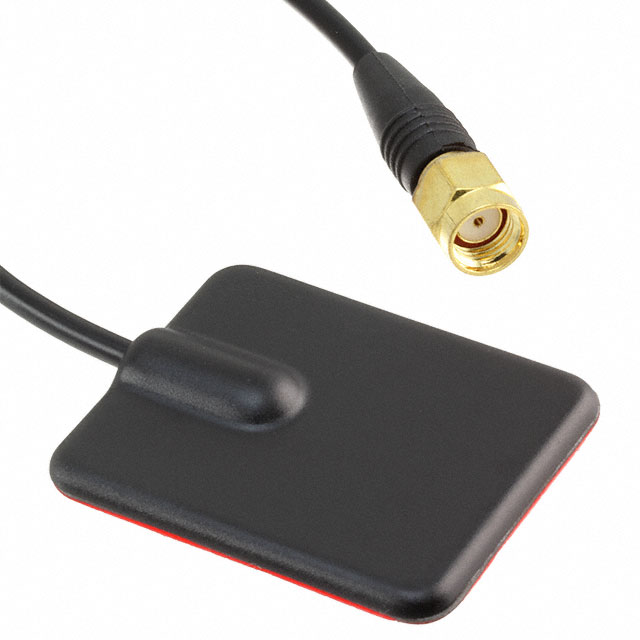

The Siretta ALPHA16/1M/SMAM/S/RP/17 is a square, passive indoor Wi-Fi antenna designed for 2.4 GHz WLAN applications. It features an adhesive mounting style with a 1-meter RG174 cable terminated in an SMA male reverse polarity connector. The unit operates within the 2.4–2.4835 GHz frequency range and provides 2 dBi gain. It maintains a 50-ohm impedance and supports up to 20 watts of power handling.

Feature Summary

Square form factor optimized for discreet indoor placement
Adhesive backing for secure surface attachment
Reverse polarity SMA male connector interface

Applications

Wi-Fi access point installations
Wireless LAN network expansion
IoT device connectivity enhancement

Procurement Notes

Verify the specific connector polarity designation (SMA Male Reverse Polarity) against your system's mating hardware to ensure physical compatibility. Confirm that the 1-meter cable length meets your routing requirements. Check RoHS compliance status if environmental regulations apply to your deployment environment.

Selection Notes

Select this model when a low-profile, square aesthetic is required for indoor Wi-Fi deployments. The reverse polarity connector is critical for systems utilizing standard SMA female ports without adapters. Consider the 2 dBi gain level for general coverage needs rather than long-range directional applications.

Part Context

This component belongs to the Siretta Alpha series, which specializes in high-performance cellular and Wi-Fi antennas. The Alpha line typically includes patch and panel styles designed for indoor environments, offering reliable signal transmission for modern wireless communication standards.
