AMAP42KP-KBR

Overview

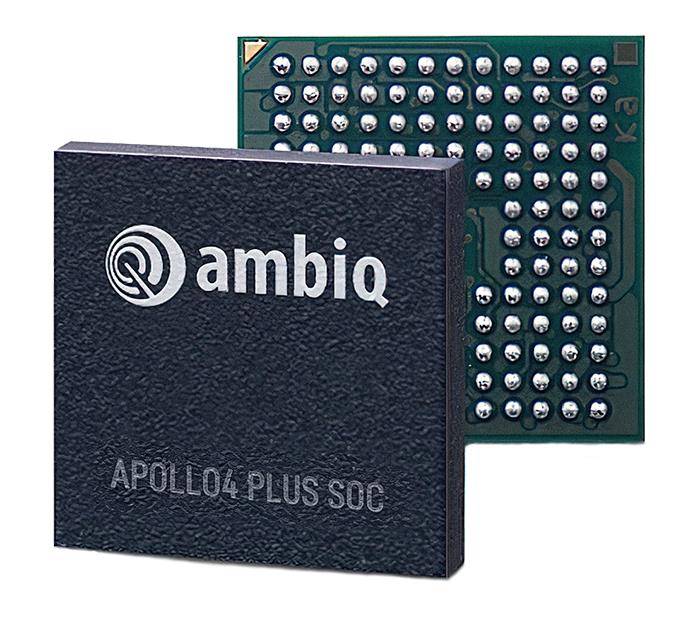

The AMAP42KP-KBR is an RF System on a Chip (SoC) from the Apollo4 Plus series by Ambiq Micro. It integrates a Cortex-M4F processor running at 192MHz with a 2.5D GPU. The device includes 2MB of MRAM and 2.75MB of SRAM. It operates within a temperature range of -20 to +60°C and is housed in a 146-pin BGA package.

Feature Summary

• Integrates a 192MHz Cortex-M4F core with a 2.5D GPU for high-performance processing
• Combines 2MB MRAM and 2.75MB SRAM for efficient memory management
• Designed as an RF SoC for wireless connectivity applications

Applications

• Wireless communication devices requiring integrated RF and processing capabilities
• IoT endpoints utilizing the Apollo4 Plus architecture
• Embedded systems needing combined MCU and GPU functionality

Procurement Notes

Verify the specific suffix KBR against official Ambiq documentation to confirm pinout, thermal characteristics, and material compliance. Ensure the 146-pin BGA footprint matches your PCB design constraints. Confirm the commercial temperature grade (-20 to +60 C) aligns with your operational environment requirements before finalizing procurement.

Selection Notes

Select this component when a unified solution for RF connectivity and complex signal processing is required. The inclusion of a 2.5D GPU alongside the Cortex-M4F core distinguishes it from standard MCUs. Verify that the 2.75MB SRAM and 2MB MRAM capacities meet your application's data storage and execution needs without external memory interfaces.

Part Context

This part belongs to the Apollo4 Plus family, which targets advanced wireless applications. It combines Ambiq's ultra-low-power technology with enhanced processing capabilities. The AMAP42KP-KBR represents a specific configuration within this series, optimized for integration in compact wireless modules.

Replacement Considerations

Check Ambiq's official Product Change Notifications (PCN) for any updates to the AMAP42KP series. Cross-reference with other Apollo4 Plus variants if pin compatibility or memory configurations differ. No direct public substitute part numbers are confirmed in the provided documentation.
