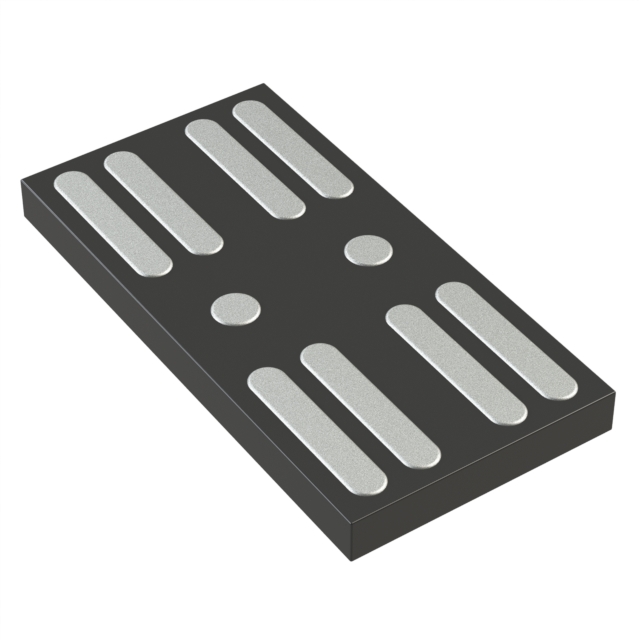

AOCA32108E

$0.93

Description：MOSFET 2N-CH 12V 25A 10DFN
Series：-

SKU:833ad535c80c Category: FET, MOSFET Arrays Brand: Alpha & Omega Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET 2N-CH 12V 25A 10DFN
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：MOSFET (Metal Oxide)
Configuration：2 N-Channel (Dual) Common Drain
FET Feature：-
Drain to Source Voltage (Vdss)：12V
Current - Continuous Drain (Id) @ 25°C：25A (Ta)
Rds On (Max) @ Id, Vgs：3.8mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id：1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：32nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds：-
Power - Max：3.1W (Ta)
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：10-SMD, No Lead
Supplier Device Package：10-AlphaDFN (3.01x1.52)
Grade：-
Qualification：-

Download product information

AOCA32108E

Overview

The AOCA32108E is a dual N-channel MOSFET array featuring a common-drain configuration and integrated ESD protection. It utilizes Alpha & Omega Semiconductor's trench power MOSFET technology to achieve ultra-low on-resistance, with RSS(ON) values below 3.8mΩ at VGS=4.5V and 5.6mΩ at VGS=2.5V. The device supports a continuous source current of 25A and operates within a junction temperature range of -55°C to 150°C. Packaged in an AlphaDFN 3.01x1.52B_10 format, it is designed for applications requiring battery protection switching and mobile device charging circuits.

Feature Summary

Ultra-low on-resistance achieved through trench power MOSFET technology
Integrated ESD protection to enhance battery performance and safety
Common-drain configuration simplifies circuit design

Applications

Battery protection switches
Mobile device battery charging circuits
Mobile device battery discharging circuits

Procurement Notes

Verify the specific ordering suffix and package form against official distributor catalogs before procurement. Confirm that the AlphaDFN 3.01x1.52B_10 package dimensions align with your PCB footprint requirements. Ensure compliance with RoHS and Halogen-Free standards as specified by the manufacturer for environmental regulations.

Selection Notes

Select this component when low on-resistance at reduced gate voltages (e.g., 2.5V or 3.1V) is critical for efficiency. The common-drain topology suits designs where source terminals are shared. Verify thermal dissipation capabilities using the provided transient thermal impedance curves for pulsed operation scenarios.

Part Context

This part belongs to Alpha & Omega Semiconductor's portfolio of discrete power devices. The company specializes in trench MOSFET technology for high-volume applications including consumer electronics and automotive systems. The AOCA32108E specifically targets mobile power management needs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official AOS resources for potential cross-references.
