AON1620

Description：MOSFET N-CH 12V 4A 6DFN
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR)

SKU:799b49dddd1c Category: Single FETs, MOSFETs Brand: Alpha & Omega Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AON1620 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Alpha & Omega Semiconductor Inc.. Its product description is MOSFET N-CH 12V 4A 6DFN. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for AON1620

Description：MOSFET N-CH 12V 4A 6DFN
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：12 V
Current - Continuous Drain (Id) @ 25°C：4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：1.5V, 4.5V
Rds On (Max) @ Id, Vgs：22mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id：1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：12 nC @ 4.5 V
Vgs (Max)：±8V
Input Capacitance (Ciss) (Max) @ Vds：770 pF @ 6 V
FET Feature：-
Power Dissipation (Max)：1.8W (Ta)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount

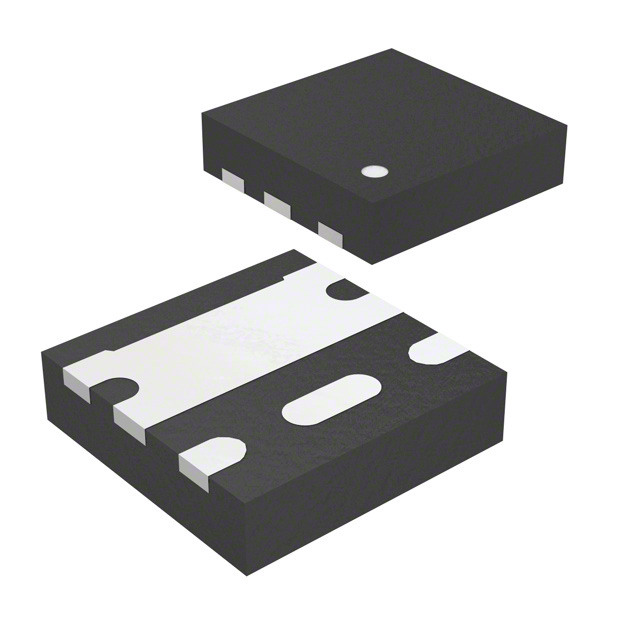

Supplier Device Package：6-DFN (1.6x1.6)
Package / Case：6-PowerUFDFN

Single FETs, MOSFETs datasheet and documents for AON1620

AON1620

Single FETs, MOSFETs Overview

The AON1620 is a 12V N-Channel MOSFET utilizing advanced trench technology to achieve low on-resistance. It features a maximum drain-source voltage of 12V and a continuous drain current of 4A at VGS=4.5V. The device offers RDS(ON) values below 22mΩ at VGS=4.5V, below 27mΩ at VGS=2.5V, and below 36mΩ at VGS=1.8V. Packaged in an FN 1.6x1.6mm format, it provides typical HBM Class 2 ESD protection and is designed for load switch and battery protection applications.

Single FETs, MOSFETs Feature Summary

Combines advanced trench MOSFET technology with a low resistance package for extremely low RDS(ON).
Provides high gate charge efficiency suitable for low power switching applications.
Includes typical HBM Class 2 electrostatic discharge protection.

Single FETs, MOSFETs Applications

Load switch circuits
Battery protection modules

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct packaging and tape-and-reel specifications. Confirm that the component meets consumer market qualification standards as defined by Alpha & Omega Semiconductor. Ensure design compliance with absolute maximum ratings for thermal and electrical stress limits during procurement planning.

Single FETs, MOSFETs Selection Notes

Select this component for applications requiring a compact footprint with low conduction losses at 12V. Evaluate gate drive voltage requirements against the specified RDS(ON) thresholds at 1.8V, 2.5V, and 4.5V. Consider the FN 1.6x1.6mm package constraints for PCB layout and thermal dissipation capabilities within still air environments.

Single FETs, MOSFETs Part Context

This part belongs to the Alpha & Omega Semiconductor N-Channel MOSFET family. It is specifically engineered for consumer electronics where space savings and efficiency are critical. The device integrates body diode characteristics optimized for synchronous rectification or freewheeling duties in low-voltage DC-DC converters.
