AON7210

Description：MOSFET N-CH 30V 30A/50A 8DFN
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR)

SKU:159465336992 Category: Single FETs, MOSFETs Brand: Alpha & Omega Semiconductor Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AON7210 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Alpha & Omega Semiconductor Inc.. Its product description is MOSFET N-CH 30V 30A/50A 8DFN. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for AON7210

Description：MOSFET N-CH 30V 30A/50A 8DFN
Series：-
Mfr：Alpha & Omega Semiconductor Inc.
Package：Tape & Reel (TR)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：30 V
Current - Continuous Drain (Id) @ 25°C：30A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：4mOhm @ 20A, 10V
Vgs(th) (Max) @ Id：2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：30 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：2380 pF @ 15 V
FET Feature：-
Power Dissipation (Max)：6.2W (Ta), 83W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount

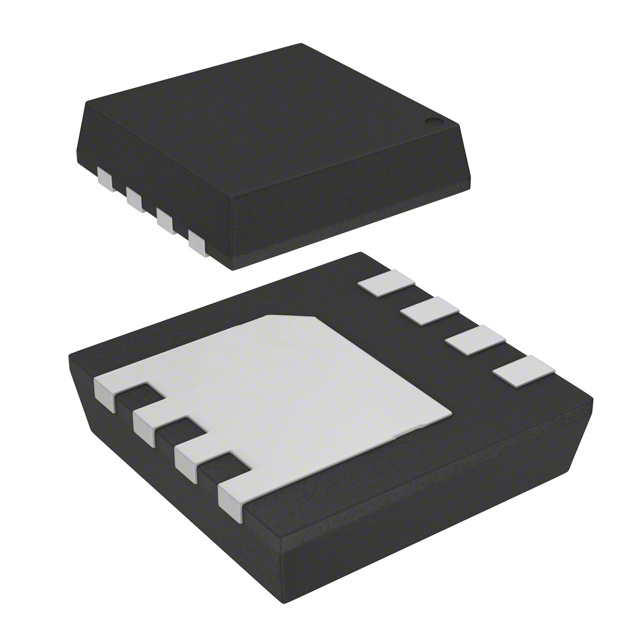

Supplier Device Package：8-DFN-EP (3.3x3.3)
Package / Case：8-PowerWDFN

Single FETs, MOSFETs datasheet and documents for AON7210

AON7210

Single FETs, MOSFETs Overview

The AON7210 is a dual N-channel MOSFET array manufactured by Alpha & Omega Semiconductor Inc. It features a drain-source voltage (Vdss) of 30V and a continuous drain current (Id) of 50A at 25°C. The device utilizes an 8-DFN-EP (5x6) surface-mount package with a maximum power dissipation of 4.1W. Key electrical parameters include a gate threshold voltage (Vgs(th)) of 2.2V max at 250µA, a gate charge (Qg) of 34nC max at 10V, and an input capacitance (Ciss) of 1720pF max at 15V. It operates within a junction temperature range of -55°C to 150°C.

Single FETs, MOSFETs Feature Summary

Dual N-channel configuration with common drain topology for efficient space-constrained designs
Logic level gate drive capability enabling direct interface with standard logic controllers
Robust thermal performance in compact 8-DFN-EP package suitable for high-current applications

Single FETs, MOSFETs Applications

High-current DC-DC converter output stages
Power distribution units in server infrastructure
Battery protection circuits in portable devices

Single FETs, MOSFETs Procurement Notes

Verify component authenticity through authorized distributors or the manufacturer directly. Confirm RoHS3 compliance and MSL rating prior to integration. Check for recent Product Change Notifications regarding assembly site changes. Ensure storage conditions adhere to moisture sensitivity guidelines to prevent package damage during soldering processes.

Single FETs, MOSFETs Selection Notes

Select this component when a dual N-channel configuration is required for synchronous rectification or load switching. The 30V rating suits low-voltage systems. Evaluate thermal resistance requirements against the 4.1W dissipation limit. Compare gate charge specifications against driver capabilities to ensure adequate switching speed without excessive losses.

Single FETs, MOSFETs Part Context

This part belongs to the AON681 series family from Alpha & Omega Semiconductor. It is designed for general-purpose power switching in consumer and industrial electronics. The manufacturer specializes in power semiconductors including MOSFETs, IGBTs, and power ICs for various electronic applications.
