APD340VRTR-G1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：DIODE SCHOTTKY 40V 3A DO214AC
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：40 V
- Current - Average Rectified (Io)：3A
- Voltage - Forward (Vf) (Max) @ If：500 mV @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：500 µA @ 40 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount

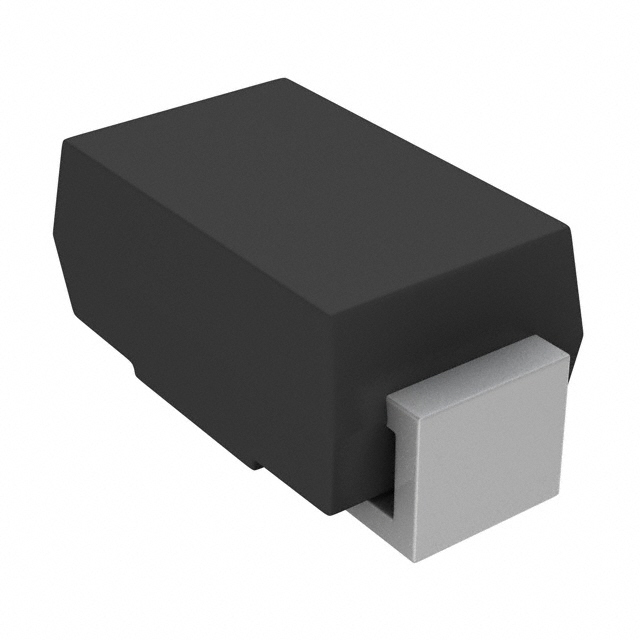

- Package / Case：DO-214AC, SMA
- Supplier Device Package：DO-214AC
- Operating Temperature - Junction：-50°C ~ 125°C
- Grade：-
- Qualification：-
Download product information
Overview
The APD340VRTR-G1 is a low voltage dual Schottky barrier rectifier manufactured by Diodes Incorporated. It features a maximum repetitive peak reverse voltage of 40V and an average rectified forward current of 3A. The device exhibits a maximum forward voltage of 0.5V at +25°C and a maximum reverse current of 0.5mA at rated voltage. It operates within a junction temperature range of -50°C to +125°C and utilizes the DO-214AC surface-mount package.
Feature Summary
- Dual Schottky configuration designed for medium voltage operation
- Low forward voltage characteristic to minimize switching losses
- High surge current capacity for robust performance
- Guard-ring structure provides stress protection
Applications
- Low Voltage High Frequency Inverters
- DC-DC Converters
- Free Wheeling circuits
- Polarity Protection
Procurement Notes
Verify the specific ordering suffix VRTR-G1 against official documentation to confirm the tape and reel packing quantity and RoHS compliance status. Ensure the component matches the required DO-214AC package dimensions and lead finish specifications before integration into production schedules.
Selection Notes
Select this component for applications requiring high-frequency operation with low noise and minimal switching losses. Consider the thermal resistance characteristics and operating temperature limits when designing heat dissipation strategies for the target circuit environment.
Part Context
This part belongs to the APD340 series of Schottky barrier rectifiers from Diodes Incorporated. It is specifically engineered for switch mode power supplies and other power converters where efficiency and speed are critical parameters.
Replacement Considerations
Consult official manufacturer documentation for verified substitute part numbers. Do not assume compatibility based on generic electrical ratings without confirming pinout and package alignment.
FAQ
What is the maximum non-repetitive peak forward surge current?
The maximum non-repetitive peak forward surge current is 80A for an 8.3ms single half sine-wave on rated load.
Is the APD340VRTR-G1 available in a green package?
Yes, it is available in a 'Green' DO-214AC package that is lead-free, halogen-free, and antimony-free.
