APT106N60LC6

Single FETs, MOSFETs Overview

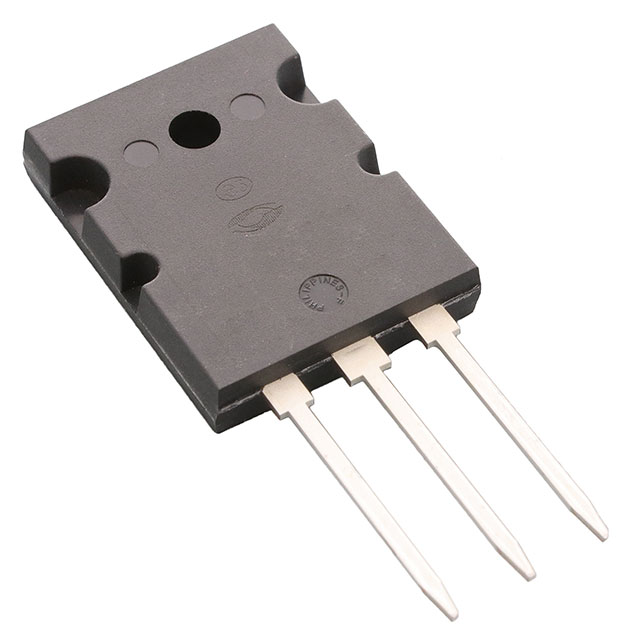

APT106N60LC6 is a N-channel enhancement mode MOSFET from the CoolMOS series, manufactured by Microchip Technology. It features a TO-264 (L) through-hole package with a drain-source voltage of 600 V and a continuous drain current of 106 A at case temperature. The device exhibits a maximum on-resistance of 35 mOhm at 10 V gate drive and 53 A current. Key electrical characteristics include a gate charge of 308 nC at 10 V, input capacitance of 8390 pF at 25 V, and a threshold voltage of 3.5 V at 3.4 mA. Power dissipation reaches 833 W at case temperature, operating within a junction temperature range of -55°C to 150°C.

Single FETs, MOSFETs Feature Summary

• Utilizes CoolMOS technology for optimized high-performance power system design.
• Provides high unclamped inductive switching capability and high dv/dt ruggedness.
• Features low on-resistance combined with ultra-low gate charge for efficient switching.

Single FETs, MOSFETs Applications

• High performance power systems
• Industrial motor control applications
• Power supply designs requiring high reliability

Single FETs, MOSFETs Procurement Notes

Verify component authenticity against official Microchip Technology documentation before integration. Confirm that the specific ordering suffix matches the required package variant and compliance standards. Ensure thermal management solutions align with the specified 833 W power dissipation rating at case temperature to maintain safe operating junction temperatures during operation.

Single FETs, MOSFETs Selection Notes

Select this component for applications demanding high voltage blocking capability and substantial current handling in a through-hole format. Evaluate thermal resistance requirements carefully given the TO-264 package constraints. Compare gate charge specifications against driver capabilities to ensure adequate switching speed without excessive drive losses.

Single FETs, MOSFETs Part Context

This part belongs to the APT106 product family, representing a line of high-voltage power MOSFETs designed for robust industrial and commercial power conversion environments. The CoolMOS series specifically targets efficiency improvements in switching applications through advanced silicon superjunction structures.

Single FETs, MOSFETs Replacement Considerations

APT106N60B2C6 serves as a verified alternative within the same manufacturer portfolio, offering identical electrical ratings but utilizing a T-MAX-3 (TO-247 MAX) package instead of the TO-264 form factor.
