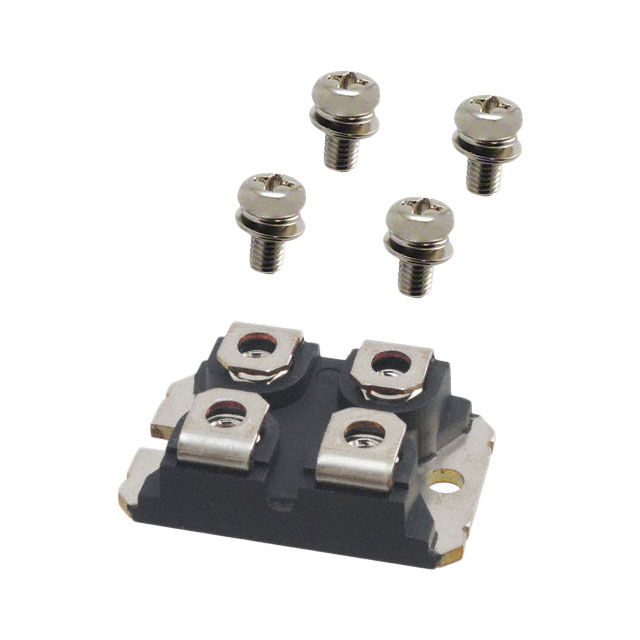

APT130SM70J

Description：SICFET N-CH 700V 78A SOT227
Series：-
Mfr：Microsemi Corporation
Package：Bulk

SKU:1da55fe3b05b Category: Single FETs, MOSFETs Brand: Microsemi Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

APT130SM70J is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Microsemi Corporation. Its product description is SICFET N-CH 700V 78A SOT227. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for APT130SM70J

Description：SICFET N-CH 700V 78A SOT227
Series：-
Mfr：Microsemi Corporation
Package：Bulk
FET Type：N-Channel
Technology：SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)：700 V
Current - Continuous Drain (Id) @ 25°C：78A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：20V
Rds On (Max) @ Id, Vgs：45mOhm @ 60A, 20V
Vgs(th) (Max) @ Id：2.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs：270 nC @ 20 V
Vgs (Max)：+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds：3950 pF @ 700 V
FET Feature：-
Power Dissipation (Max)：273W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：-
Qualification：-
Mounting Type：Chassis Mount
Supplier Device Package：SOT-227 (ISOTOP®)
Package / Case：SOT-227-4, miniBLOC

Single FETs, MOSFETs datasheet and documents for APT130SM70J

APT130SM70J

Single FETs, MOSFETs Overview

The Microsemi APT130SM70J is a Silicon Carbide N-Channel Power MOSFET rated for 700V drain-source voltage and 78A continuous drain current at 25°C case temperature. It features a typical on-resistance of 35mΩ in an ISOTOP SOT-227 package. The device supports a maximum junction temperature of 175°C with a total power dissipation of 273W at 25°C.

Single FETs, MOSFETs Feature Summary

Utilizes silicon carbide technology to provide low on-resistance that remains virtually independent of ambient temperature.
Features fast switching speed enabled by low internal gate resistance and low capacitances.
Includes a fast and reliable body diode, eliminating the need for external free-wheeling diodes.
Demonstrates superior avalanche ruggedness and stable operation at high junction temperatures.

Single FETs, MOSFETs Applications

PV inverters, converters, and industrial motor drives
Smart grid transmission and distribution systems
Induction heating and welding equipment
H/EV powertrains and EV chargers

Single FETs, MOSFETs Procurement Notes

Verify component authenticity through authorized Microsemi channels or certified distributors. Confirm datasheet revision status (Rev C) and check for discontinuation notices. Ensure thermal management solutions match the specified junction-to-case thermal resistance requirements for the target application environment.

Single FETs, MOSFETs Selection Notes

Select this component for high-voltage applications requiring efficient thermal performance and reduced system complexity. Evaluate the 700V rating against peak circuit voltages and ensure the 78A current capability aligns with load requirements. Consider the SOT-227 package dimensions for mechanical integration and verify gate drive compatibility with the specified threshold voltage characteristics.

Single FETs, MOSFETs Part Context

This part belongs to Microsemi's Silicon Carbide power MOSFET product line, designed to outperform traditional silicon MOSFETs and IGBTs in high-voltage scenarios. The ISOTOP SOT-227 packaging provides robust thermal handling capabilities suitable for demanding industrial and automotive environments.
