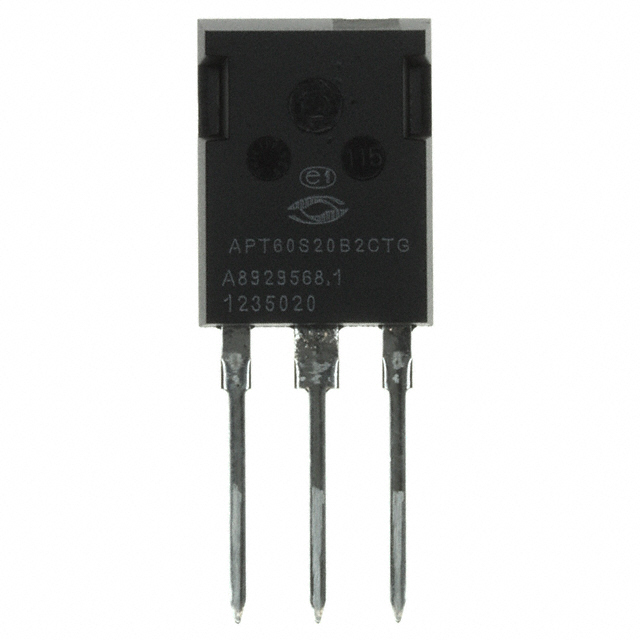

APT60S20B2CTG
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：DIODE ARRAY SCHOTT 200V 75A TMAX
- Series：-
- Mfr：Microchip Technology
- Package：Tube
- Diode Configuration：1 Pair Common Cathode
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：200 V
- Current - Average Rectified (Io) (per Diode)：75A
- Voltage - Forward (Vf) (Max) @ If：900 mV @ 60 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：55 ns
- Current - Reverse Leakage @ Vr：1 mA @ 200 V
- Operating Temperature - Junction：-55°C ~ 150°C
- Mounting Type：Through Hole
- Package / Case：TO-247-3 Variant
- Supplier Device Package：T-MAX™ [B2]
- Grade：-
- Qualification：-
Download product information
Overview
The APT60S20B2CTG is a silicon Schottky rectifier manufactured by Microchip Technology. It features a dual anode common cathode configuration housed in a TO-247-3 package for through-hole mounting. The device supports a repetitive reverse voltage of 200 V and a forward current of 75 A. Key electrical parameters include a maximum forward voltage of 980 mV, a peak forward surge current of 208 A, and a reverse current of 25 mA. It operates within a temperature range of -55°C to +150°C.
Feature Summary
- Dual anode common cathode configuration suitable for center tap rectification
- Schottky barrier technology for low forward voltage drop
- High thermal performance with TO-247-3 through-hole packaging
Applications
- Center tap rectifier circuits
- DC power supply output stages
- Freewheeling diodes in switching converters
Procurement Notes
Verify the complete part number including suffixes against official Microchip documentation to ensure correct configuration and package type. Confirm RoHS compliance status via the manufacturer's datasheet or product change notifications before procurement. Cross-reference specifications with the latest public datasheets to validate electrical ratings and thermal characteristics for your specific application requirements.
Selection Notes
Select this component for applications requiring high current handling and low forward voltage drop in a through-hole package. The dual anode common cathode design simplifies circuit topology for center-tapped transformer configurations. Ensure the thermal management solution accommodates the device's power dissipation capabilities within the specified operating temperature range.
Part Context
This component belongs to Microchip's Schottky Diodes & Rectifiers product line. It utilizes silicon technology and is designed for robust power switching applications. The TO-247-3 package provides mechanical stability and efficient heat dissipation for high-current operations.
Replacement Considerations
Consult official Microchip substitution guides for verified alternatives. Do not assume pin-compatible substitutes from other manufacturers without verifying electrical parameters and package dimensions against the original datasheet.
