APT75GN120LG

Overview

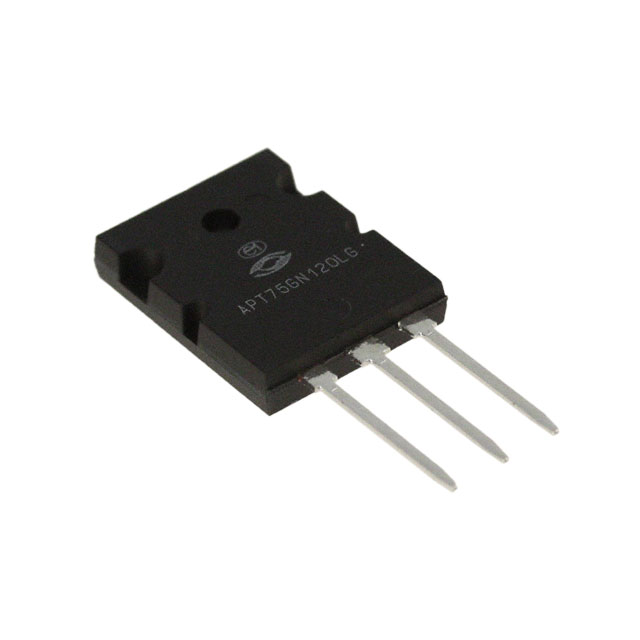

The APT75GN120LG is a single IGBT from Microchip Technology, utilizing Trench Field Stop technology. It features a 1200 V collector-emitter voltage rating and a TO-264 (L) package. The device supports a continuous collector current of 200 A at 25°C and handles up to 833 W power dissipation. Operating temperatures range from -55°C to +150°C.

Feature Summary

• Trench Field Stop architecture for optimized switching performance
• High current handling capability with 200 A continuous rating
• Robust thermal management supporting 833 W power dissipation

Applications

• Industrial motor drives
• Uninterruptible power supplies
• Welding equipment

Procurement Notes

Verify the specific manufacturer part number against official Microchip Technology documentation to ensure authenticity. Confirm that the component matches the required electrical specifications and package type for your design. Check for any recent product lifecycle changes or obsolescence notices directly from the manufacturer before procurement.

Selection Notes

Select this component when a high-voltage, high-current single IGBT is required for robust industrial applications. The TO-264 package offers efficient heat dissipation for screw-mount installations. Ensure the gate drive circuitry aligns with the device's switching characteristics and voltage ratings.

Part Context

This IGBT belongs to Microchip's discrete transistor lineup, designed for medium to high-power switching applications. It complements other devices in the family by providing reliable performance in demanding environments where high voltage and current capacity are critical requirements.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify pinout compatibility and electrical parameter equivalence if considering cross-brand replacements.
