Product Detailed Parameters
- Description：MOSFET 4N-CH 600V 72A SP3
- Series：-
- Mfr：Microchip Technology
- Package：Bulk
- Technology：MOSFET (Metal Oxide)
- Configuration：4 N-Channel (Full Bridge)
- FET Feature：-
- Drain to Source Voltage (Vdss)：600V
- Current - Continuous Drain (Id) @ 25°C：72A
- Rds On (Max) @ Id, Vgs：35mOhm @ 72A, 10V
- Vgs(th) (Max) @ Id：3.9V @ 5.4mA
- Gate Charge (Qg) (Max) @ Vgs：518nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds：14000pF @ 25V
- Power - Max：416W
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：SP3
- Supplier Device Package：SP3
- Grade：-
- Qualification：-
Download product information
Overview

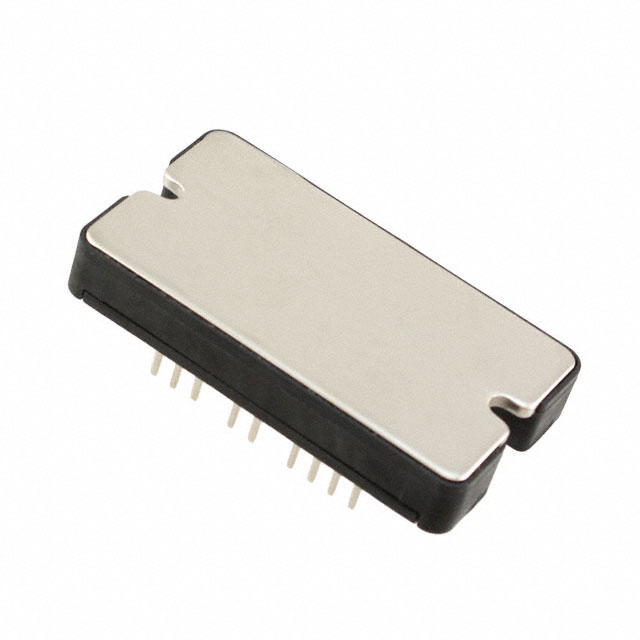

The APTC60HM35T3G is a silicon-based MOSFET module from Microchip Technology, utilizing CoolMOS SP3F technology. It features a 600V drain-source voltage and a continuous drain current of 72A. The device is housed in the SP3-32 package with screw mount installation. Key electrical parameters include a maximum power dissipation of 416W, a gate-emitter maximum voltage of 20V, and an operating temperature range spanning from -40°C to +100°C.
Feature Summary
- Integrates four N-channel MOSFETs within a single discrete semiconductor module for compact system design.
- Employs CoolMOS SP3F technology to achieve low on-resistance and optimized switching performance.
- Features a robust chassis-mountable SP3-32 package designed for high-power thermal management.
Applications
- Industrial motor drives and control systems
- High-frequency switching power supplies
- Inverter circuits for renewable energy applications
Procurement Notes
Verify the specific suffix T3G against official Microchip documentation to confirm RoHS compliance and tube packaging details. Ensure the SP3-32 mechanical dimensions match your chassis requirements. Cross-reference the datasheet revision date to validate all electrical limits before finalizing procurement specifications.
Selection Notes
Select this component when a quad-N-channel configuration is required within a single insulated module. The 600V rating suits medium-voltage industrial applications. Evaluate the 72A continuous current capability against your thermal design constraints. Confirm that the screw-mount interface aligns with your existing heatsink infrastructure.
Part Context
This module belongs to the PM-MOSFET-COOLMOS-SP3F product family. It represents a discrete power solution combining multiple MOSFET dies into one package. The SP3F series targets high-efficiency power conversion needs. It serves as a modular alternative to discrete component assemblies.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult Microchip Technology directly for qualified replacements or pin-compatible alternatives within the CoolMOS SP3F portfolio.
