APTGF150A120TG

Overview

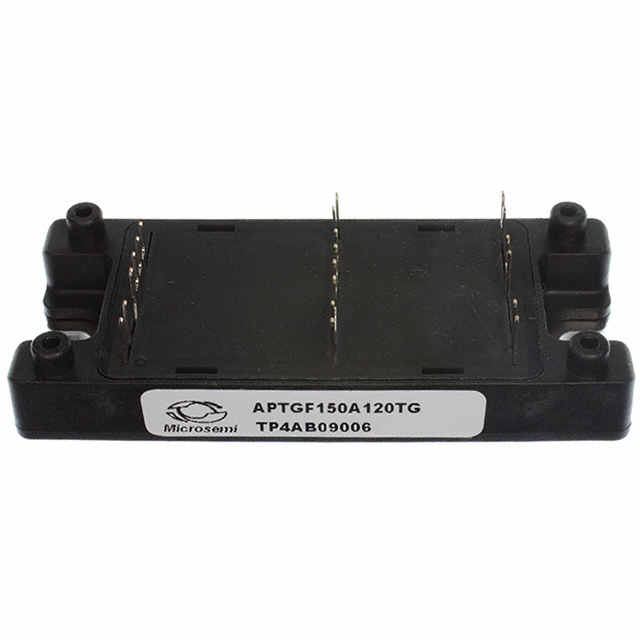

The APTGF150A120TG is a single-phase leg NPT IGBT power module manufactured by Microchip Technology. It features a collector-emitter breakdown voltage of 1200 V and a continuous collector current rating of 150 A at a case temperature of 80°C. The device includes an integrated antiparallel diode with a maximum peak repetitive reverse voltage of 1200 V and a DC forward current of 100 A. Electrical characteristics include a typical collector-emitter saturation voltage of 3.7 V at 150 A and 25°C, and a gate-emitter threshold voltage ranging from 4.5 V to 6.5 V. The module utilizes an SP4 package with screw mounting and incorporates an internal NTC thermistor for thermal monitoring.

Feature Summary

• Non-Punch Through (NPT) Fast IGBT technology providing low voltage drop and soft recovery parallel diodes
• Kelvin emitter configuration designed to facilitate easy drive circuit integration
• Symmetrical design with lead frames for power connections to minimize stray inductance
• Internal NTC thermistor embedded for precise temperature monitoring

Applications

• Welding converters
• Switched Mode Power Supplies
• Uninterruptible Power Supplies
• Motor control systems

Procurement Notes

Verify the specific revision level against the latest official datasheet before procurement. Confirm that the SP4 package dimensions and mounting torque specifications align with the mechanical constraints of the target heatsink interface. Ensure electrostatic discharge handling procedures are strictly followed during assembly to prevent damage to the sensitive semiconductor junctions.

Selection Notes

Select this component when a rugged single-phase leg topology is required for high-frequency operation up to 50 kHz. The positive temperature coefficient of VCEsat facilitates stable paralleling if higher current capacity is needed. Verify that the operating junction temperature range of -40°C to 150°C meets the environmental requirements of the final application.

Part Context

This part belongs to the Microsemi phase leg NPT IGBT power module family. It shares the SP4 isolated package form factor with other modules in the series but differs in current ratings and voltage thresholds. The product line emphasizes direct mounting capabilities and low junction-to-case thermal resistance for efficient heat dissipation in industrial power electronics.

Replacement Considerations

Direct pin-compatible replacements within the same SP4 package family should be evaluated based on matching VCEO and IC ratings. Verify that any substitute maintains similar switching energy losses and thermal impedance characteristics to ensure compatibility with existing gate drive and cooling designs.
