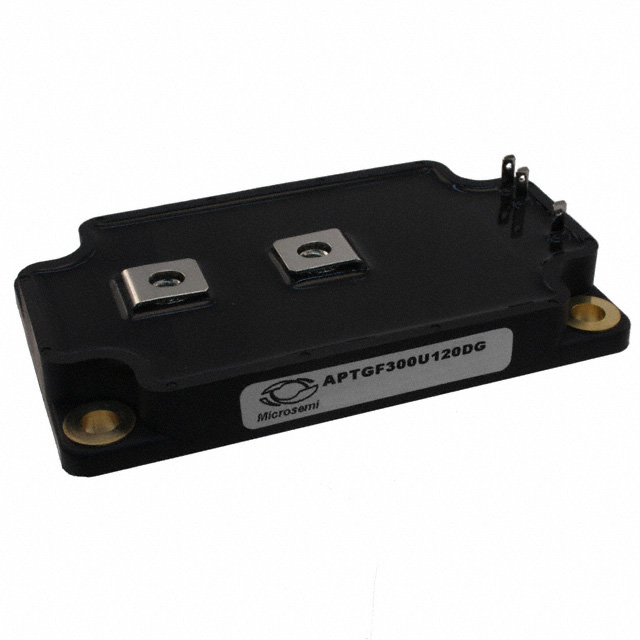

APTGF300U120DG

$81.46

Description：IGBT MODULE 1200V 400A 1780W SP6
Series：-

SKU:04b182e12553 Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 400A 1780W SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：NPT
Configuration：Single
Vce(on) (Max) @ Vge, Ic：3.9V @ 15V, 300A
Input：Standard
NTC Thermistor：No
Operating Temperature：-
Mounting Type：Chassis Mount
Package / Case：SP6
Supplier Device Package：SP6
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：400 A
Power - Max：1780 W
Current - Collector Cutoff (Max)：500 µA
Input Capacitance (Cies) @ Vce：21 nF @ 25 V

Download product information

APTGF300U120DG

Overview

The APTGF300U120DG is a single-switch NPT IGBT power module with an integrated series diode, manufactured by Microchip Technology. It features a collector-emitter breakdown voltage of 1200 V and a continuous collector current rating of 400 A at Tc = 25°C, decreasing to 300 A at Tc = 80°C. The maximum power dissipation is 1780 W at Tc = 25°C. The device utilizes an SP6 isolated package designed for direct heatsink mounting. Electrical characteristics include a typical collector-emitter saturation voltage of 3.9 V at 300 A and a gate-emitter threshold voltage ranging from 4.5 V to 6.5 V.

Feature Summary

Non-Punch Through (NPT) FAST IGBT technology providing low voltage drop and low tail current
Soft recovery parallel diodes with low forward voltage and leakage current
Kelvin emitter configuration for simplified drive circuit implementation
Symmetrical design with M5 power connectors ensuring very low stray inductance

Applications

Zero Current Switching resonant mode converters
High frequency operation circuits up to 50 kHz
Industrial motor control systems

Procurement Notes

Verify the specific revision level against the latest official datasheet before procurement. Confirm that the SP6 package dimensions and mounting torque specifications align with the mechanical constraints of the target application. Ensure electrostatic discharge handling procedures are strictly followed during assembly due to component sensitivity.

Selection Notes

Select this module for applications requiring high switching frequencies and rugged performance. Evaluate thermal management requirements based on the junction-to-case thermal resistance values provided in the datasheet. Consider the positive temperature coefficient of VCEsat when designing parallel configurations to ensure stable current sharing across multiple units.

Part Context

This component belongs to the Microsemi NPT IGBT Power Module family. It integrates a single switch with series diodes in an isolated package. The product line emphasizes high-frequency capabilities and low profile designs suitable for demanding industrial power electronics environments.
