APTGT150DA120G

$100.52

Description：IGBT MODULE 1200V 220A 690W SP6
Series：-

SKU:18bdb4884232 Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 220A 690W SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Single
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 150A
Input：Standard
NTC Thermistor：No
Operating Temperature：-
Mounting Type：Chassis Mount
Package / Case：SP6
Supplier Device Package：SP6
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：220 A
Power - Max：690 W
Current - Collector Cutoff (Max)：350 µA
Input Capacitance (Cies) @ Vce：10.7 nF @ 25 V

Download product information

APTGT150DA120G

Overview

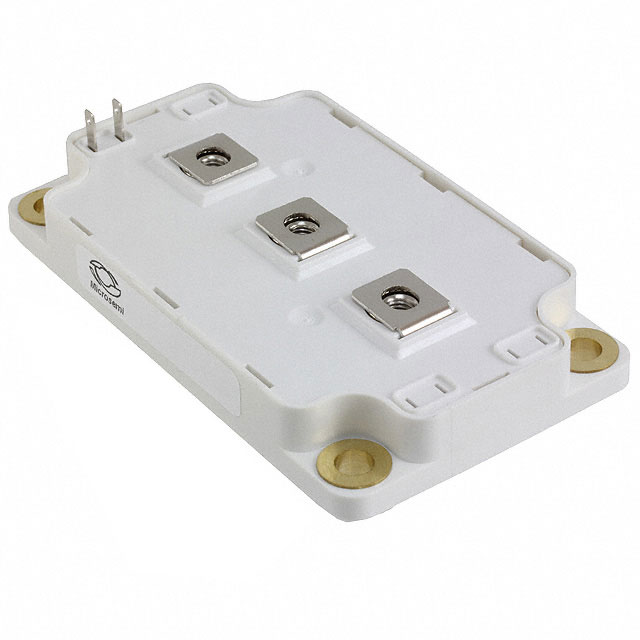

The APTGT150DA120G is a dual IGBT module manufactured by Microchip Technology, housed in the SP6C package. It features a maximum collector-emitter voltage of 1200 V and a continuous collector current of 150 A at 25°C. The saturation voltage is specified at 1.7 V, with a power dissipation rating of 690 W. The device operates within a temperature range of -40°C to +125°C and utilizes screw mount installation.

Feature Summary

Dual configuration for bridge applications
Field-stop technology for optimized switching performance
Screw mount mechanical interface

Applications

Industrial motor drives
Uninterruptible power supplies
Inverter circuits

Procurement Notes

Verify the specific suffix G against official Microchip documentation to confirm RoHS compliance status. Confirm the exact SP6C variant matches the required pinout and thermal characteristics for the target design. Cross-reference datasheet revisions to ensure parameter consistency before finalizing procurement orders.

Selection Notes

Select this component when a dual IGBT configuration with 1200 V blocking capability is required. Ensure the thermal management system supports the 690 W dissipation rating. Verify that the gate drive requirements align with the standard 15 V operating voltage typical for this family.

Part Context

This module belongs to the Microchip PowerTrench series, utilizing field-stop IGBT technology. It is designed for high-efficiency power conversion applications requiring robust switching characteristics and reliable operation under industrial conditions.

Replacement Considerations

Check for direct replacements within the same SP6C footprint family. Verify electrical parameters such as Vceo and Ic match or exceed original requirements. Confirm thermal resistance values are compatible with existing heatsink designs.
