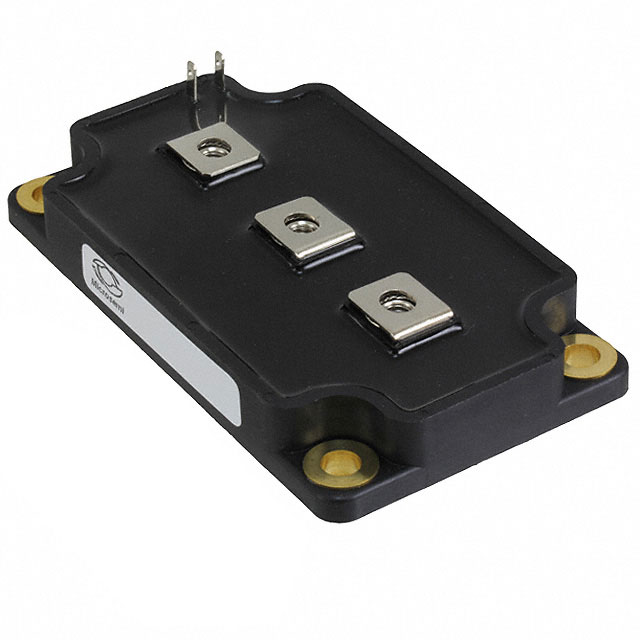

APTGT150SK120G

$100.52

Description：IGBT MODULE 1200V 220A 690W SP6
Series：-

SKU:1e90abe1f421 Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 220A 690W SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Single
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 150A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP6
Supplier Device Package：SP6
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：220 A
Power - Max：690 W
Current - Collector Cutoff (Max)：350 µA
Input Capacitance (Cies) @ Vce：10.7 nF @ 25 V

Download product information

APTGT150SK120G

Overview

The Microchip Technology APTGT150SK120G is a single IGBT power module utilizing silicon technology. It features a maximum collector-emitter voltage (VCEO) of 1.2 kV and a continuous collector current of 220 A at 25°C. The device exhibits a collector-emitter saturation voltage of 1.7 V and a gate-emitter leakage current of 400 nA. Maximum power dissipation is rated at 690 W, with an operating temperature range from -40°C to +100°C. The module employs screw mount installation within the SP6 package and supports a maximum gate-emitter voltage of 20 V.

Feature Summary

Single configuration IGBT module designed for high-power switching applications
SP6 package format enabling robust screw mount integration
Silicon-based construction optimized for industrial power conversion environments

Applications

Industrial motor drives and variable frequency drives
Uninterruptible power supply systems
High-frequency inverter circuits

Procurement Notes

Verify component authenticity through authorized Microchip Technology distributors or certified suppliers. Confirm RoHS compliance status via official datasheets prior to integration. Ensure storage conditions align with manufacturer specifications to maintain device integrity during handling and assembly processes.

Selection Notes

Select this module for applications requiring 1.2 kV blocking capability and 220 A continuous current handling. Evaluate thermal management requirements against the 690 W power dissipation rating. Confirm mechanical compatibility with the SP6 package dimensions and screw mounting specifications for the target design.

Part Context

This component belongs to the Microchip Power Modules series, specifically the PM-IGBT-TFS-SP6C family. It represents a discrete single-switch solution within the broader portfolio of silicon IGBT modules offered by the manufacturer for medium-to-high power electronic systems.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify electrical parameters and package compatibility before considering cross-references.
