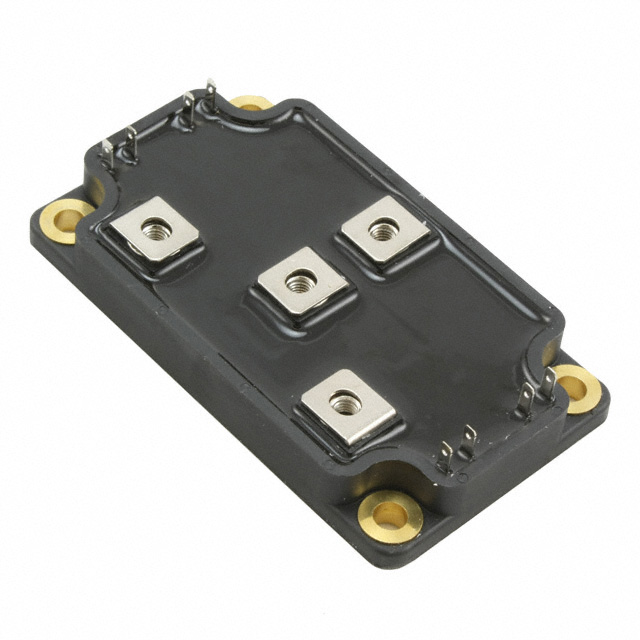

APTGT150TL60G

$129.57

Description：IGBT MODULE 600V 200A 480W SP6
Series：-

SKU:e04b2eb21006 Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 600V 200A 480W SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Three Level Inverter
Vce(on) (Max) @ Vge, Ic：1.9V @ 15V, 150A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP6
Supplier Device Package：SP6
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：200 A
Power - Max：480 W
Current - Collector Cutoff (Max)：250 µA
Input Capacitance (Cies) @ Vce：9.2 nF @ 25 V

Download product information

APTGT150TL60G

Overview

The APTGT150TL60G is a single IGBT module manufactured by Microchip Technology, utilizing silicon technology. It features a maximum collector-emitter voltage (VCEO) of 600 V and a continuous collector current of 200 A at 25°C. The device exhibits a collector-emitter saturation voltage of 1.5 V and a gate-emitter leakage current of 400 nA. Power dissipation is rated at 480 W, with an operating temperature range from -40°C to +100°C. The component is housed in an SP6 package, designed for screw mount installation, and has a unit weight of 110 g.

Feature Summary

Single IGBT configuration within the PM-IGBT-TFS-SP6C product family
Silicon-based semiconductor construction for robust power switching
Screw mount mounting style for secure mechanical integration

Applications

Industrial motor drives
Uninterruptible power supplies
Inverter systems

Procurement Notes

Verify the specific datasheet revision and any Product Change Notifications (PCN) issued by Microchip Technology prior to procurement. Confirm that the SP6 package dimensions and terminal configurations match the target PCB or busbar design requirements. Ensure thermal interface materials are compatible with the module's base plate specifications for optimal heat dissipation performance.

Selection Notes

Select this component when a single IGBT with 600 V blocking capability and 200 A continuous current rating is required. The SP6 package offers a compact form factor suitable for applications where space is limited but high current handling is necessary. Consider the 1.5 V saturation voltage for efficiency calculations in low-voltage, high-current circuits.

Part Context

This part belongs to the Microchip Technology PM-IGBT-TFS-SP6C series, which provides various voltage and current ratings within the same SP6 package footprint. This simplifies board layout and mechanical design across different product variants. The series supports scalable power solutions for industrial applications requiring reliable silicon IGBT performance.

Replacement Considerations

Direct replacements include other parts within the PM-IGBT-TFS-SP6C series such as APTGT150SK60G or APTGT150DA60G, provided electrical parameters like VCEO and ICC meet the application requirements. Verify pinout compatibility and thermal characteristics before substitution.
