APTGT200DU120G

$150.12

Description：IGBT MODULE 1200V 280A 890W SP6
Series：-

SKU:fce548527f2d Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 280A 890W SP6
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Dual, Common Source
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 200A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP6
Supplier Device Package：SP6
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：280 A
Power - Max：890 W
Current - Collector Cutoff (Max)：350 µA
Input Capacitance (Cies) @ Vce：14 nF @ 25 V

Download product information

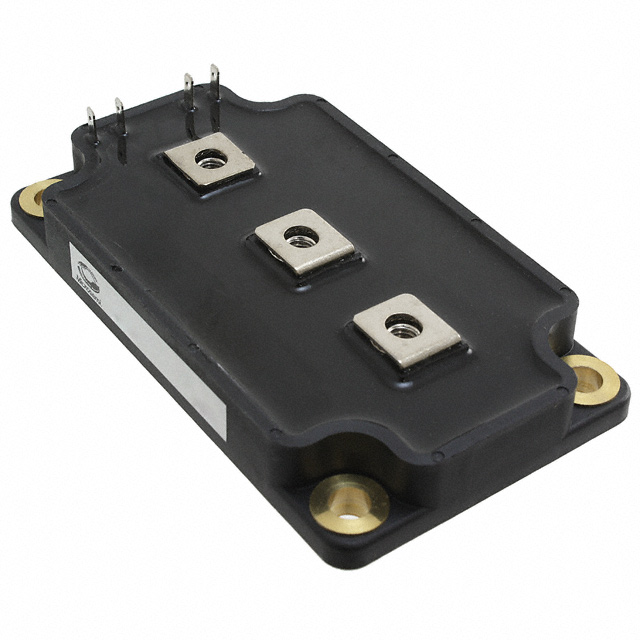

APTGT200DU120G

Overview

The APTGT200DU120G is a silicon-based IGBT module manufactured by Microchip Technology, housed in an SP6 package. It features a dual common source configuration with a maximum collector-emitter voltage of 1.2 kV and a continuous collector current of 280 A at 25°C. The device exhibits a collector-emitter saturation voltage of 1.7 V and a power dissipation rating of 890 W. Gate-emitter leakage current is specified at 500 nA, with a maximum gate-emitter voltage of 20 V. Operating temperatures range from -40°C to +100°C, and the unit weighs 110 g.

Feature Summary

Dual common source configuration for bridge circuit applications
Screw mount installation style for secure mechanical attachment
SP6 packaging format designed for high-power thermal management

Applications

Industrial motor drives
Uninterruptible power supplies
High-frequency inverters

Procurement Notes

Verify the specific ordering suffix and revision level against the manufacturer's latest datasheet before procurement. Confirm that the SP6 package dimensions and terminal configurations match the target heatsink interface requirements. Ensure compliance with RoHS directives as indicated in official documentation. Cross-reference the part number with authorized distributors to confirm current availability status and lead times.

Selection Notes

Select this component when a dual IGBT configuration is required within the SP6 form factor. Evaluate the 1.2 kV voltage rating against system bus voltages to ensure adequate safety margins. Consider the 280 A continuous current capability relative to thermal management solutions. Verify that the screw mount mounting style aligns with the mechanical design constraints of the final assembly.

Part Context

This module belongs to the APTGT series of trench field-stop IGBTs from Microchip Technology. The series utilizes silicon technology optimized for high-power switching applications. The SP6 package provides a standardized footprint for integration into various power electronic systems requiring robust performance and reliable operation under demanding electrical conditions.
