Product Detailed Parameters
- Description：IGBT MODULE 600V 400A 940W D3
- Series：-
- Mfr：Microchip Technology
- Package：Bulk
- IGBT Type：Trench Field Stop
- Configuration：Single
- Vce(on) (Max) @ Vge, Ic：1.9V @ 15V, 300A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Package / Case：D-3 Module
- Supplier Device Package：D3
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：400 A
- Power - Max：940 W
- Current - Collector Cutoff (Max)：500 µA
- Input Capacitance (Cies) @ Vce：18.5 nF @ 25 V
Download product information
Overview

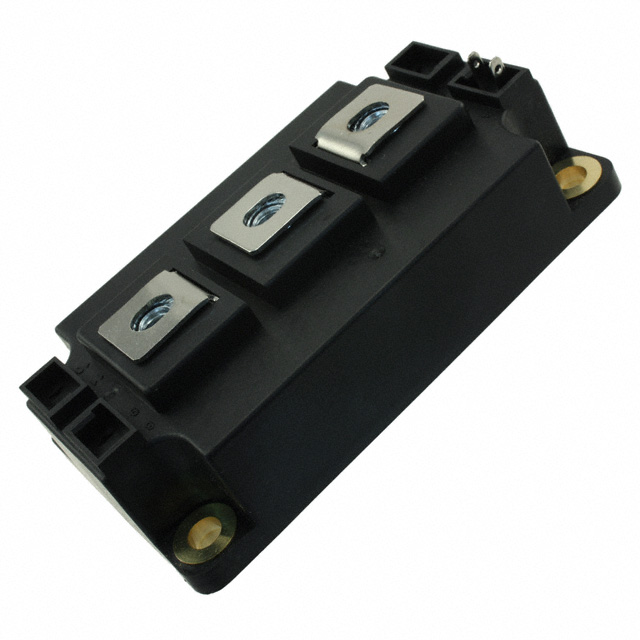

The Microchip Technology APTGT300SK60D3G is a single-channel IGBT module utilizing trench field-stop technology. It features a maximum collector-emitter voltage of 600 V and a continuous collector current of 400 A at 25°C. The device exhibits a collector-emitter saturation voltage of 1.5 V and a power dissipation rating of 940 W. Operating within a junction temperature range of -40°C to +175°C, it employs a D3-11 screw-mount package. Key electrical parameters include a gate-emitter leakage current of 400 nA and a maximum gate-emitter voltage of 20 V.
Feature Summary
- Trench field-stop IGBT technology for optimized switching performance
- Integrated soft-recovery parallel diode for circuit stability
- Screw-mount base installation for thermal management
Applications
- Industrial motor control systems
- High-frequency switching power supplies
- General industrial inverter applications
Procurement Notes
Verify the specific datasheet revision and assembly site information prior to ordering, as manufacturing locations may change. Confirm RoHS compliance status directly with the manufacturer or authorized distributor. Ensure the required quantity aligns with standard factory packaging configurations. Check for any regional sales restrictions that may apply to this component.
Selection Notes
Select this module for applications requiring high current handling up to 400 A with a 600 V blocking capability. The D3-11 package is suitable for screw-mount heatsink interfaces. Consider the 1.5 V saturation voltage for conduction loss calculations. Verify that the thermal design supports the 940 W power dissipation limit within the specified operating temperature range.
Part Context
This component belongs to the APTGT series of power modules from Microchip Technology. It represents a single-phase configuration within the broader portfolio of trench field-stop IGBT solutions. The D3-11 package format is common for medium-power industrial applications requiring robust mechanical mounting.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Evaluate alternative single-channel 600 V IGBT modules with similar current ratings and D3-11 packaging if direct replacement is necessary.
