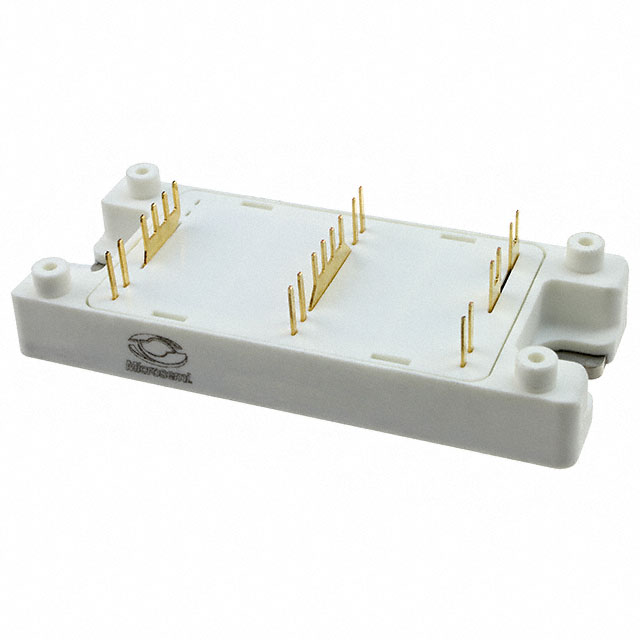

APTGT75DA120TG

$57.16

Description：IGBT MODULE 1200V 110A 357W SP4
Series：-

SKU:2b22a88333ce Category: IGBT Modules Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE 1200V 110A 357W SP4
Series：-
Mfr：Microchip Technology
Package：Bulk
IGBT Type：Trench Field Stop
Configuration：Single
Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 75A
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SP4
Supplier Device Package：SP4
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：110 A
Power - Max：357 W
Current - Collector Cutoff (Max)：250 µA
Input Capacitance (Cies) @ Vce：5.34 nF @ 25 V

Download product information

APTGT75DA120TG

Overview

The APTGT75DA120TG is a single IGBT module manufactured by Microchip Technology, utilizing silicon technology. It features a maximum collector-emitter voltage of 1.2 kV and a continuous collector current of 75 A at 25°C. The device exhibits a collector-emitter saturation voltage of 1.7 V and a gate-emitter leakage current of 400 nA. Power dissipation is rated at 277 W. It operates within a temperature range of -40°C to +100°C and uses an SP4 package with screw mount installation.

Feature Summary

Single configuration IGBT power module designed for high-voltage switching applications
Utilizes silicon semiconductor technology for robust performance
Engineered for screw mount installation in industrial power systems

Applications

Industrial motor drives
Uninterruptible power supplies
Inverter circuits

Procurement Notes

Verify the specific datasheet revision and ordering suffixes directly with Microchip Technology or authorized distributors before procurement. Confirm that the SP4 package dimensions and thermal characteristics align with your heatsink design requirements. Ensure compliance with RoHS directives as specified in the official documentation. Cross-reference the part number against the latest product change notices to avoid obsolete variants.

Selection Notes

Select this component when a single-switch IGBT solution with 1.2 kV blocking capability and 75 A continuous current rating is required. The SP4 package offers a compact form factor suitable for space-constrained designs. Consider the 277 W power dissipation rating relative to your thermal management strategy. Verify that the operating temperature range meets the environmental conditions of the target application.

Part Context

This module belongs to the APTGT series of IGBT modules from Microchip Technology. The series typically includes various configurations and voltage ratings for power electronics applications. The SP4 package is a standard housing for these types of discrete power modules, facilitating easy integration into existing PCB or chassis layouts.
