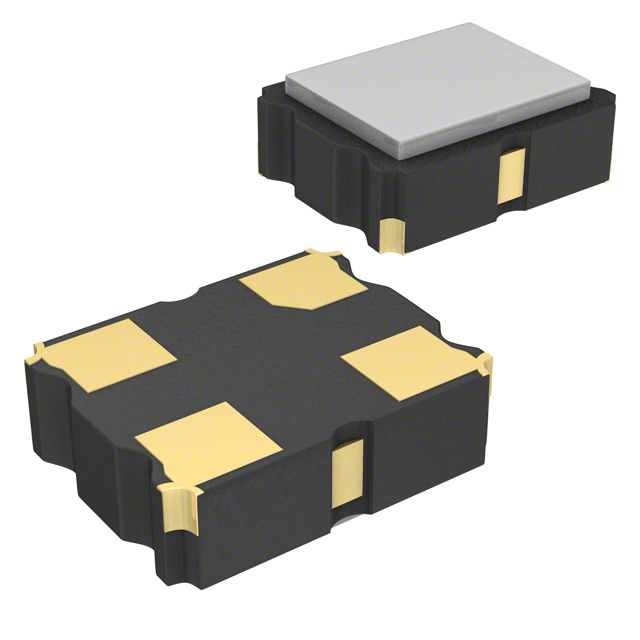

AW-25.000MBJ-T

$2.03

Description：OSC XO 25.0000MHZ CMOS SMD
Series：AW
Mfr：TXC CORPORATION
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:bcbcb19e2ca8 Category: Oscillators Brand: TXC CORPORATION

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AW-25.000MBJ-T is listed in the Oscillators range at ChipApex. The manufacturer field lists TXC CORPORATION. Its product description is OSC XO 25.0000MHZ CMOS SMD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for AW-25.000MBJ-T

Description：OSC XO 25.0000MHZ CMOS SMD
Series：AW
Mfr：TXC CORPORATION
Package：Tape & Reel (TR),Cut Tape (CT)
Base Resonator：-
Type：XO (Standard)
Frequency：25 MHz
Function：Enable/Disable
Output：CMOS
Voltage - Supply：3.3V
Frequency Stability：±50ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 105°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：10mA
Ratings：AEC-Q100
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)：0.035" (0.90mm)
Supplier Device Package：-

Oscillators datasheet and documents for AW-25.000MBJ-T

AW-25.000MBJ-T

Oscillators Overview

The AW-25.000MBJ-T is a standard clock oscillator manufactured by TXC Corporation, designed for automotive applications with AEC-Q100 certification. It operates at a frequency of 25 MHz using CMOS output format and requires a supply voltage of 3.3 V. The device features a frequency stability of +/-50 ppm across an extended temperature range of -40°C to +105°C. It utilizes a ceramic package in a compact 2.5x2.0 mm surface-mount footprint.

Oscillators Feature Summary

AEC-Q100 certified for automotive grade reliability
CMOS output signal generation
Extended industrial temperature operation

Oscillators Applications

Automotive electronic systems
In-vehicle infotainment units
Automotive communication modules

Oscillators Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct voltage and tolerance specifications. Confirm that the component meets the required AEC-Q100 qualification standards for your target application environment. Cross-reference the package dimensions and pin configuration with your PCB layout requirements prior to procurement.

Oscillators Selection Notes

Select this component when an automotive-grade oscillator with AEC-Q100 certification is required. Ensure the system design supports the specified 3.3V supply voltage and CMOS output interface. Verify that the operating temperature range of -40°C to +105°C aligns with the environmental conditions of the intended deployment scenario.

Oscillators Part Context

This part belongs to the AW series of quartz oscillators from TXC Corporation, specifically tailored for automotive electronics. The series provides reliable timing solutions compliant with automotive industry standards, offering stable performance in demanding vehicular environments compared to general consumer-grade alternatives.
