Product Detailed Parameters

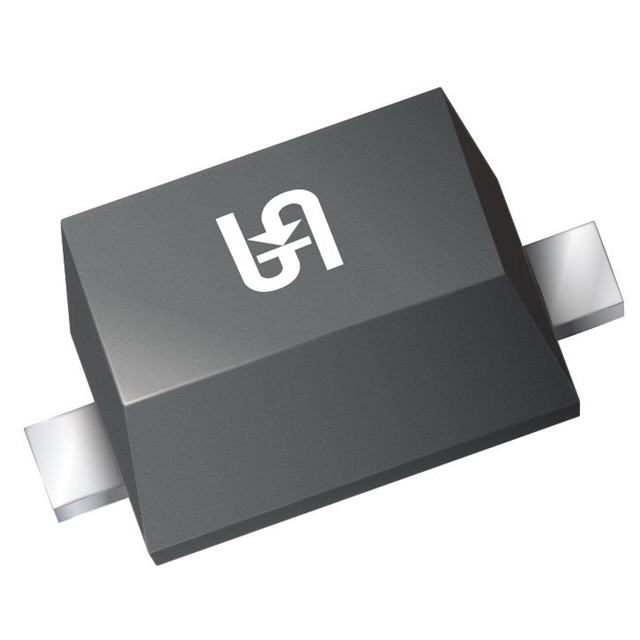

- Description：DIODE SCHOTTKY 30V 500MA SOD123F
- Series：-
- Mfr：Taiwan Semiconductor Corporation
- Package：Tape & Reel (TR)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：30 V
- Current - Average Rectified (Io)：500mA
- Voltage - Forward (Vf) (Max) @ If：500 mV @ 500 mA
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：130 µA @ 30 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount
- Package / Case：SOD-123F
- Supplier Device Package：SOD-123F
- Operating Temperature - Junction：-65°C ~ 125°C
- Grade：-
- Qualification：-
Download product information
Overview
The B0530WF RHG is a Schottky barrier rectifier manufactured by Taiwan Semiconductor Corporation. It features a single diode configuration housed in an SOD-123F surface-mount package. The device supports a maximum average forward rectified current of 0.5 A and a repetitive peak reverse voltage of 30 V. Key electrical characteristics include a low forward voltage drop, high surge current capability, and minimal reverse leakage current. It operates within a junction temperature range of -55°C to +125°C and complies with RoHS standards.
Feature Summary
- Low forward voltage for enhanced efficiency
- High surge current capability
- Minimal reverse leakage current
- Surface mount design for automated assembly
Applications
- DC-DC converters
- Free-wheeling diodes
- Polarity protection circuits
- Power supply output rectification
Procurement Notes
Verify the specific suffix 'WF' against official manufacturer documentation to confirm exact marking codes and tape-and-reel specifications. Ensure compliance requirements match project needs. Confirm availability through authorized distributors as standard stock levels vary. Request updated datasheets to validate latest revisions before finalizing procurement orders.
Selection Notes
Select this component for applications requiring efficient rectification at low voltages. The SOD-123F package suits space-constrained designs. Evaluate thermal management requirements based on power dissipation limits. Compare forward voltage characteristics against alternative Schottky diodes to ensure optimal system efficiency under expected load conditions.
Part Context
This part belongs to the B05xx series of Schottky rectifiers from Taiwan Semiconductor. These devices are designed for general-purpose rectification in low-voltage, high-frequency applications. The series offers various voltage ratings while maintaining consistent current handling capabilities across different package options.
Replacement Considerations
Check for direct substitutes such as B0530W or B0530WS from the same manufacturer. Verify pinout compatibility and electrical parameter equivalence when considering cross-brand alternatives.
