Product Detailed Parameters
- Description：DIODE SCHOTTKY 60V 3A SMB
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：60 V
- Current - Average Rectified (Io)：3A
- Voltage - Forward (Vf) (Max) @ If：700 mV @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：500 µA @ 60 V
- Capacitance @ Vr, F：200pF @ 4V, 1MHz
- Mounting Type：Surface Mount

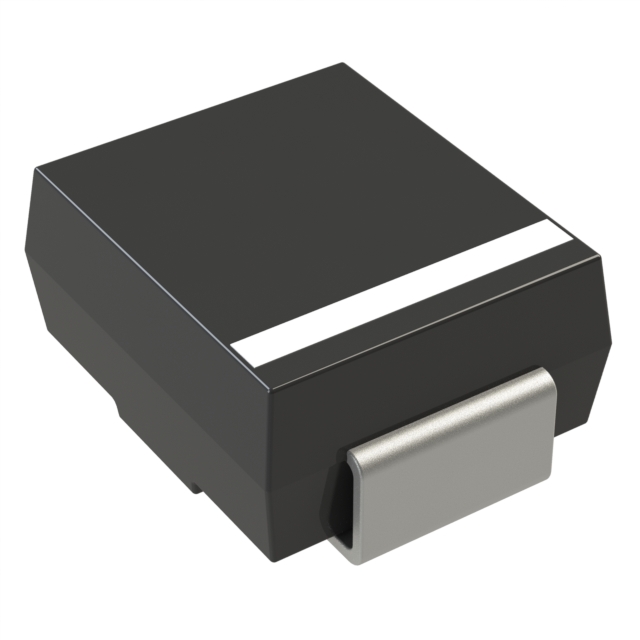

- Package / Case：DO-214AA, SMB
- Supplier Device Package：SMB
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Download product information
Overview
The B360B-13 is a surface mount Schottky barrier rectifier manufactured by Diodes Incorporated. It features a single diode configuration in an SMB (DO-214AA) package. Key electrical parameters include a maximum repetitive reverse voltage of 60 V and an average forward rectified current of 3 A. The device exhibits a maximum forward voltage of 700 mV at 3 A and a maximum non-repetitive peak forward surge current of 100 A. Operating temperatures range from -55 °C to +125 °C junction temperature.
Feature Summary
- Guard ring die construction provides transient protection capabilities.
- Designed for low power loss and high efficiency operation.
- Suitable for automated assembly processes.
Applications
- Low voltage, high frequency inverters
- Free wheeling applications
- Polarity protection circuits
Procurement Notes
Verify the specific suffix against procurement requirements. The '13' suffix typically indicates tape and reel packaging, while 'F' may denote RoHS compliance or specific packaging variations. Confirm exact ordering codes with the manufacturer to ensure compatibility with automated placement equipment and regulatory standards.
Selection Notes
Select this component for applications requiring a 60 V rating and 3 A continuous current handling in a compact SMB package. Ensure the thermal management design supports the specified junction temperature limits. Compare forward voltage characteristics against system efficiency requirements relative to alternative Schottky rectifiers.
Part Context
This part belongs to the B3xxB series of surface mount Schottky barrier rectifiers from Diodes Incorporated. The series offers various voltage ratings within the same physical footprint, allowing for design flexibility. The B360B variant specifically targets 60 V applications, sharing mechanical data and reliability qualifications with other members of the family.
Replacement Considerations
Direct substitutes within the same series include B320B-13 and B340B-13 for lower voltage ratings. For identical specifications, verify availability of B360B-13-F, which may differ only in packaging or compliance markings. Cross-reference pinouts and thermal resistance values when considering alternatives from other manufacturers.
