B3C153B

Overview

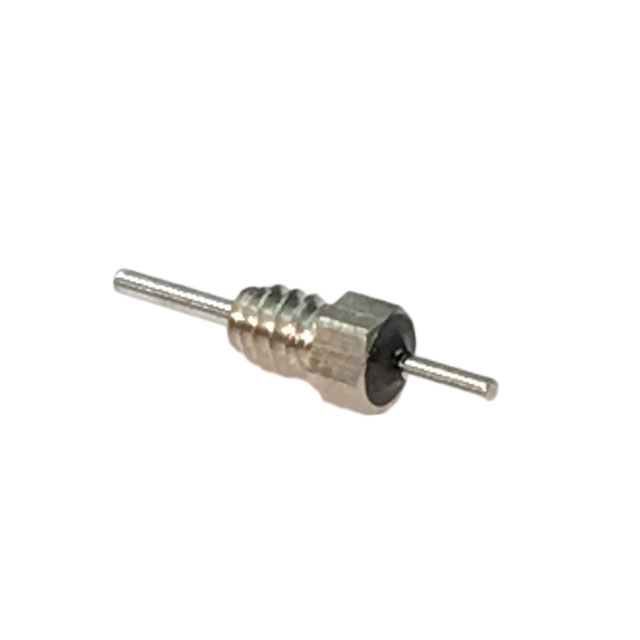

The B3C153B is a feed-through capacitor manufactured by EMI Filter Company. It features an axial package with bushing termination and utilizes X7R dielectric material. The component has a capacitance of 0.015 µF (15,000 pF) and a rated voltage of 100 VDC. It supports a maximum current of 10 A and operates within a temperature range defined by the X7R coefficient.

Feature Summary

• Provides electromagnetic interference suppression through low-pass filtering in bulkhead-mounted designs
• Utilizes X7R dielectric for stable capacitance performance across operating temperatures
• Features axial bushing construction for direct panel or chassis mounting

Applications

• RF enclosure filtering
• Microwave system noise suppression
• Bulkhead-mounted power line filtering

Procurement Notes

Verify the specific datasheet version to confirm tolerance ranges and exact thermal ratings. Ensure the mounting interface matches the required bushing specifications. Confirm that the 100V DC rating aligns with the circuit's peak voltage requirements. Check for any RoHS compliance documentation if required by the assembly standards.

Selection Notes

Select this component when a bulkhead-mounted solution is required for RF or microwave applications. The X7R dielectric offers reliable performance where temperature stability is critical. The axial bushing format simplifies integration into shielded enclosures compared to surface-mount alternatives.

Part Context

This part belongs to the B3 'C' circuit series from EMI Filter Company. The manufacturer specializes in bulkhead-mounted EMI/RFI low-pass feed-through filters designed for RF, microwave, and general enclosure filtering applications. This series provides robust shielding integration directly into equipment housings.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
