B3L30LP-7

$0.52

Description：DIODE SCHOTTKY 30V 3A UDFN30308
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:faa7048fdff6 Category: Single Diodes Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE SCHOTTKY 30V 3A UDFN30308
Series：-
Mfr：Diodes Incorporated
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：30 V
Current - Average Rectified (Io)：3A
Voltage - Forward (Vf) (Max) @ If：450 mV @ 3 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：1 mA @ 30 V
Capacitance @ Vr, F：-
Mounting Type：Surface Mount

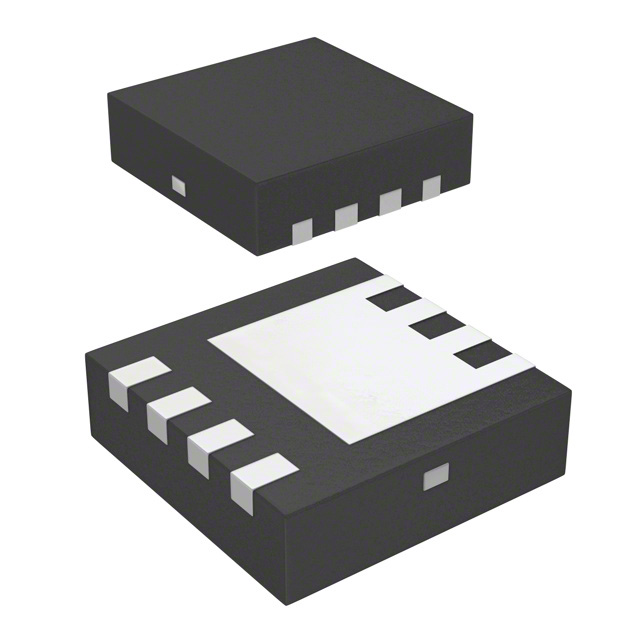

Package / Case：8-PowerUDFN
Supplier Device Package：U-DFN3030-8
Operating Temperature - Junction：-65°C ~ 150°C
Grade：-
Qualification：-

Download product information

B3L30LP-7

Overview

The B3L30LP-7 is a Schottky barrier rectifier manufactured by Diodes Incorporated, housed in a U-DFN3030-8 surface-mount package. It features a single quad anode and quad cathode configuration with a peak repetitive reverse voltage of 30 V and an average rectified output current of 3.0 A. The device supports a non-repetitive peak forward surge current of 30 A and operates within a temperature range of -65°C to +150°C. Electrical characteristics include a maximum forward voltage drop of 0.45 V at 3.0 A and 25°C, and a maximum reverse leakage current of 1.0 mA at 30 V and 25°C.

Feature Summary

Guard ring die construction designed for transient protection
Low forward voltage drop contributing to high efficiency and low power loss
High forward surge current capability for overload handling

Applications

Low voltage, high frequency inverters
Free wheeling applications
Polarity protection circuits

Procurement Notes

Verify the specific ordering suffix '-7' corresponds to the 3000-unit tape and reel packaging format as documented in the manufacturer's ordering information. Confirm that the component meets RoHS compliance standards and halogen-free requirements if specified for the target assembly process. Ensure the U-DFN3030-8 footprint matches the design layout guidelines provided in the datasheet.

Selection Notes

Select this component for designs requiring a compact surface-mount Schottky rectifier with a 30 V rating and 3 A continuous current capacity. The U-DFN3030-8 package offers a small form factor suitable for space-constrained PCB layouts. Consider the thermal resistance values when calculating heat dissipation on FR-4 or aluminum substrates to ensure operation remains within the specified junction temperature limits.

Part Context

This part belongs to the B3L30LP series of Schottky barrier rectifiers from Diodes Incorporated. It utilizes silicon technology and is packaged in a lead-free, green molding compound case rated UL 94V-0. The device is moisture sensitivity level 1 compliant per J-STD-020 and features nickel-palladium-gold terminal finishes over a copper lead frame.
