BAS16X-T3P-B002

Overview

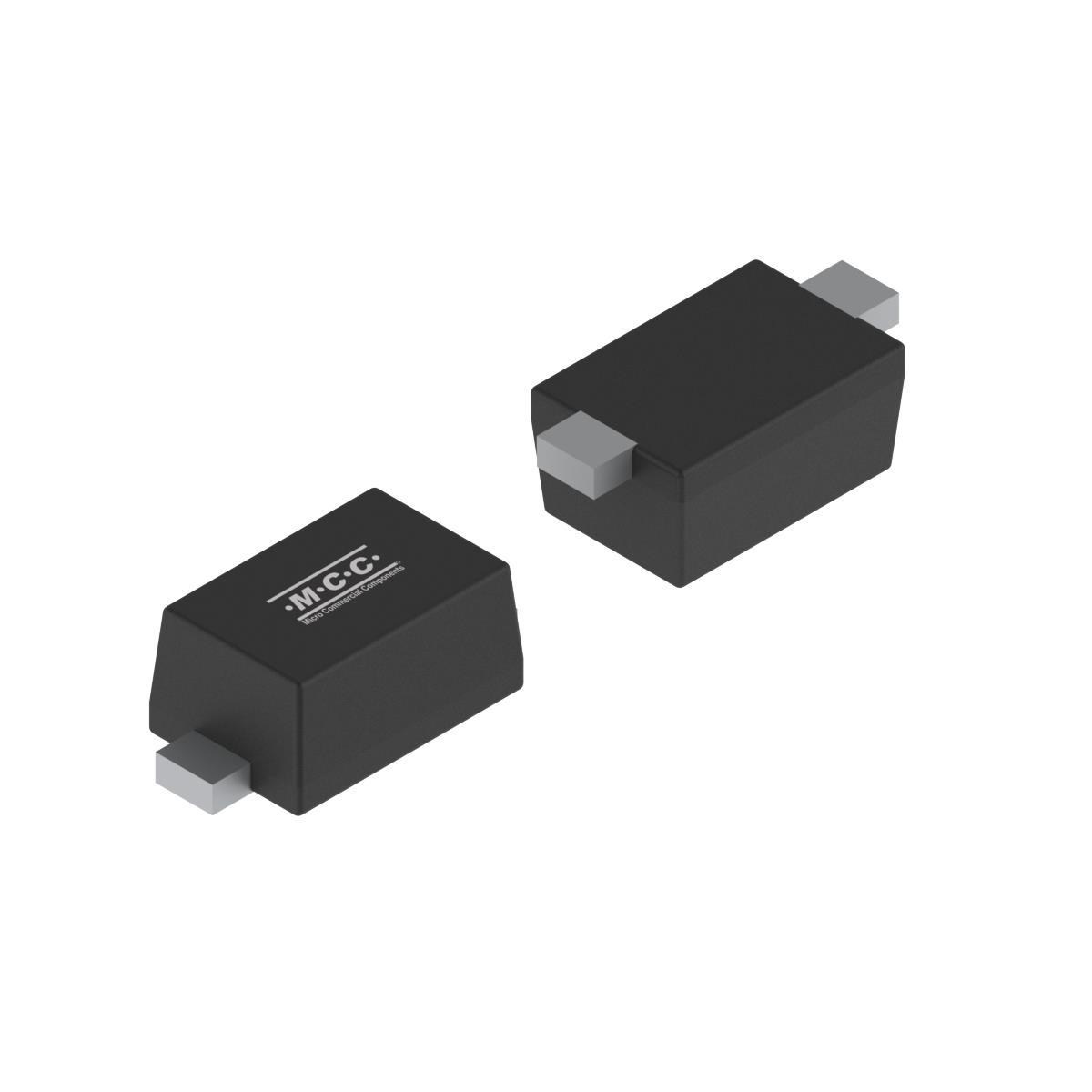

The BAS16X-T3P-B002 is a small signal switching diode manufactured by Micro Commercial Components (MCC). It features a maximum DC reverse voltage of 75 V and an average rectified forward current of 200 mA. The device exhibits a typical reverse recovery time of 6 ns and a forward voltage of 1.25 V at 150 mA. Reverse leakage current is specified as 1 µA at 75 V, with a capacitance of 2pF at 0V and 1MHz. It operates within a junction temperature range of -55°C to 150°C and is housed in an SOD-523 surface-mount package.

Feature Summary

• High-speed switching capability with low reverse recovery time for efficient signal processing
• Compact SOD-523 surface-mount package design suitable for space-constrained PCB layouts
• Robust thermal performance supporting operation across extended industrial temperature ranges

Applications

• High-frequency signal switching circuits
• Clamping and protection applications in consumer electronics
• General-purpose rectification in compact power supplies

Procurement Notes

Verify the specific suffix B002 against official MCC documentation to confirm packaging or marking variations. Ensure compatibility with standard SOD-523 footprints during integration. Cross-reference datasheet electrical limits with circuit requirements to prevent overstress. Confirm RoHS compliance status through manufacturer declarations prior to procurement.

Selection Notes

Select this component when high-speed switching is required in minimal footprint designs. The 75V rating suits low-voltage logic interfaces. Evaluate thermal management needs given the 150°C junction limit. Compare reverse leakage specifications against sensitive analog front-end requirements to ensure signal integrity is maintained under operating conditions.

Part Context

This part belongs to the BAS16 series of small signal diodes from Micro Commercial Components. The BAS16 family provides general-purpose switching solutions in compact packages. The BAS16X variant typically denotes specific electrical or packaging optimizations within the broader product line, designed for modern surface-mount assembly processes.

Replacement Considerations

BAS16X-TP is a documented equivalent offering identical electrical characteristics and SOD-523 packaging. Verify pinout compatibility and thermal resistance values before substitution. Ensure that any alternative maintains the same reverse voltage and current ratings for direct replacement.
