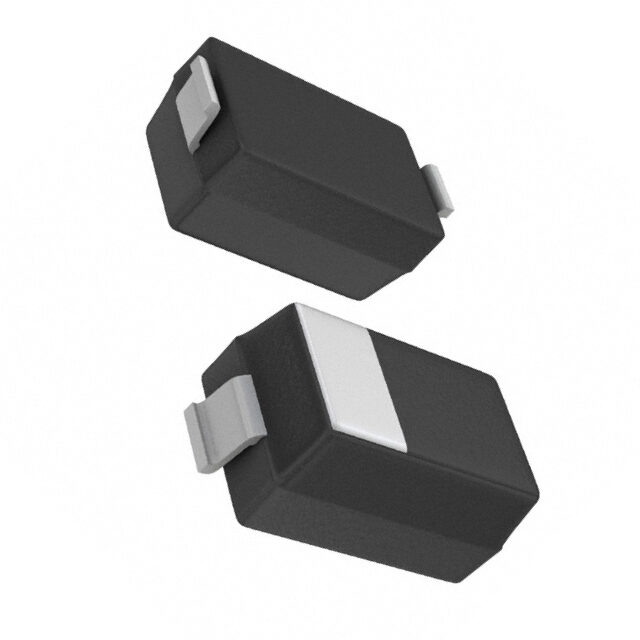

BAV20W

$0.09

Description：150V 1.25V 50NS 200MA SOD-123
Series：-
Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f3a87a29dacd Category: Single Diodes Brand: Shenzhen Slkormicro Semicon Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BAV20W is listed in the Single Diodes range at ChipApex. The manufacturer field lists Shenzhen Slkormicro Semicon Co., Ltd.. Its product description is 150V 1.25V 50NS 200MA SOD-123. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for BAV20W

Description：150V 1.25V 50NS 200MA SOD-123
Series：-
Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：200 V
Current - Average Rectified (Io)：200mA
Voltage - Forward (Vf) (Max) @ If：1.25 V @ 200 mA
Speed：Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)：50 ns
Current - Reverse Leakage @ Vr：100 nA @ 150 V
Capacitance @ Vr, F：5pF @ 0V, 1MHz
Mounting Type：Surface Mount
Package / Case：SOD-123
Supplier Device Package：SOD-123
Operating Temperature - Junction：-65°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for BAV20W

BAV20W

Single Diodes Overview

The BAV20W is a small signal diode manufactured by Shenzhen Slkormicro Semicon Co., Ltd. It features a voltage range of 150 Volts and a current rating of 200 milliamperes. The component is designed for general-purpose switching and rectification applications in low-power electronic circuits.

Single Diodes Applications

General-purpose signal switching
Low-current rectification
Protection circuits

Single Diodes Procurement Notes

Verify the manufacturer designation on the datasheet to confirm alignment with Shenzhen Slkormicro Semicon Co., Ltd. specifications. Ensure the part number matches the exact small signal diode configuration with the stated electrical ratings before procurement.

Single Diodes Selection Notes

Select this component for applications requiring a 150V reverse voltage capability and 200mA forward current handling. Confirm that the package type and thermal characteristics meet the specific circuit design requirements for reliable operation.

Single Diodes Part Context

This diode belongs to the discrete semiconductor category, specifically within the small signal diode segment. It serves as a fundamental passive-active hybrid component used for controlling current flow direction in various electronic assemblies.
