BAV21_AY_00001

Overview

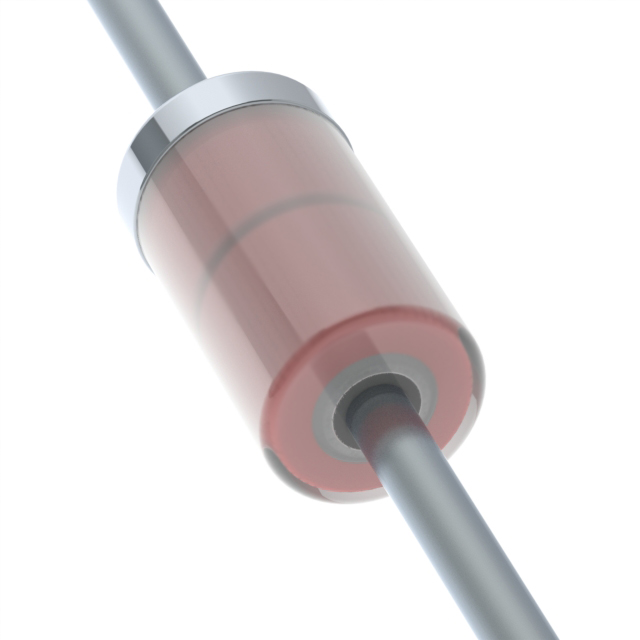

The BAV21_AY_00001 is a small signal switching diode manufactured by Panjit International Inc. It features a DO-35 axial leaded package and is designed for high-voltage applications with a peak reverse voltage of 250V. The component supports a forward current of 1A and is suitable for general-purpose rectification and switching tasks in electronic circuits.

Feature Summary

• High voltage capability with 250V peak reverse voltage rating
• Robust current handling with 1A forward current capacity
• Standard DO-35 axial leaded package for through-hole mounting

Applications

• General purpose rectification
• High voltage switching circuits
• Signal processing applications

Procurement Notes

Verify the specific ordering suffix and packaging configuration directly with Panjit or authorized distributors, as the AY suffix indicates a specific tape and reel or ammo pack variant. Confirm RoHS compliance status and latest datasheet revisions before finalizing procurement to ensure compatibility with current manufacturing standards.

Selection Notes

Select this component when a standard axial diode with 250V reverse voltage and 1A continuous forward current is required. The DO-35 package offers reliable through-hole integration. Ensure the application does not exceed the specified thermal limits or require surface mount technology alternatives.

Part Context

This part belongs to Panjit's small signal switching diode portfolio, specifically utilizing the BAV21 electrical specification within a DO-35 mechanical housing. The AY suffix denotes the specific commercial packaging format provided by the manufacturer for distribution channels.
