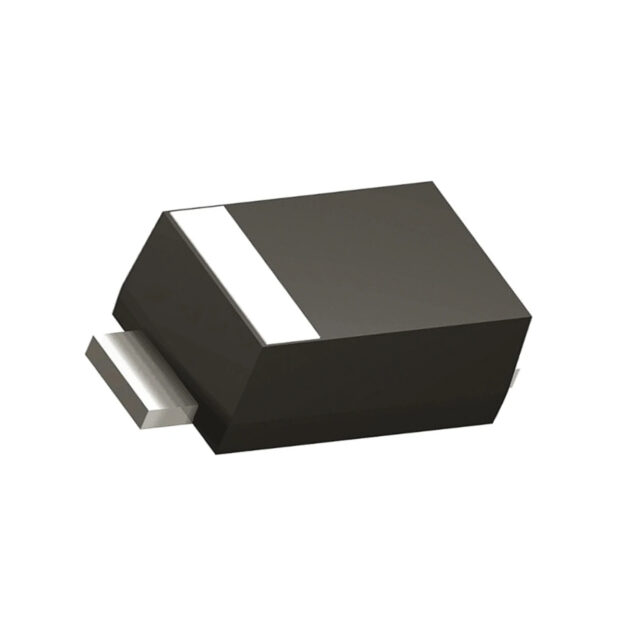

BAV21W

$0.09

Description：200V 1.25V 50NS 200MA SOD-123
Series：-
Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:7b90ec2541c8 Category: Single Diodes Brand: Shenzhen Slkormicro Semicon Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BAV21W is listed in the Single Diodes range at ChipApex. The manufacturer field lists Shenzhen Slkormicro Semicon Co., Ltd.. Its product description is 200V 1.25V 50NS 200MA SOD-123. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for BAV21W

Description：200V 1.25V 50NS 200MA SOD-123
Series：-
Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：250 V
Current - Average Rectified (Io)：200mA
Voltage - Forward (Vf) (Max) @ If：1.25 V @ 200 mA
Speed：Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)：50 ns
Current - Reverse Leakage @ Vr：100 nA @ 200 V
Capacitance @ Vr, F：5pF @ 0V, 1MHz
Mounting Type：Surface Mount
Package / Case：SOD-123
Supplier Device Package：SOD-123
Operating Temperature - Junction：-65°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for BAV21W

BAV21W

Single Diodes Overview

The BAV21W is a small signal switching diode manufactured by Shenzhen Slkormicro Semicon Co., Ltd. It features a single silicon element with a maximum repetitive peak reverse voltage of 250V and a maximum average output current of 0.2A. The device operates within a temperature range of -65°C to 150°C, with a maximum power dissipation of 0.4W. Packaged in a small outline format, it is designed for general-purpose high-voltage switching applications requiring reliable performance in compact electronic circuits.

Single Diodes Feature Summary

High voltage capability suitable for demanding switching environments
Compact surface mount packaging for space-constrained designs
Robust thermal performance across wide operating temperatures

Single Diodes Applications

General purpose high voltage switching circuits
Small signal rectification tasks
Protection circuits in consumer electronics

Single Diodes Procurement Notes

Verify the manufacturer designation on the component marking code against official datasheets. Confirm package dimensions and pinout compatibility with your PCB footprint. Ensure RoHS compliance status matches project requirements. Cross-reference electrical parameters such as reverse voltage and forward current with system specifications before finalizing procurement decisions.

Single Diodes Selection Notes

Select this component when high reverse voltage blocking is required in a small signal application. Consider the 0.2A current limit and 250V rating for circuit protection roles. Evaluate the small outline package size against available board space. Compare thermal dissipation characteristics with similar diodes if operating near maximum ratings.

Single Diodes Part Context

This part belongs to the family of small signal switching diodes used in low-power digital and analog circuits. It serves as a fundamental discrete semiconductor component for signal isolation and rectification. The design focuses on reliability and compact form factor for modern electronic assemblies.
