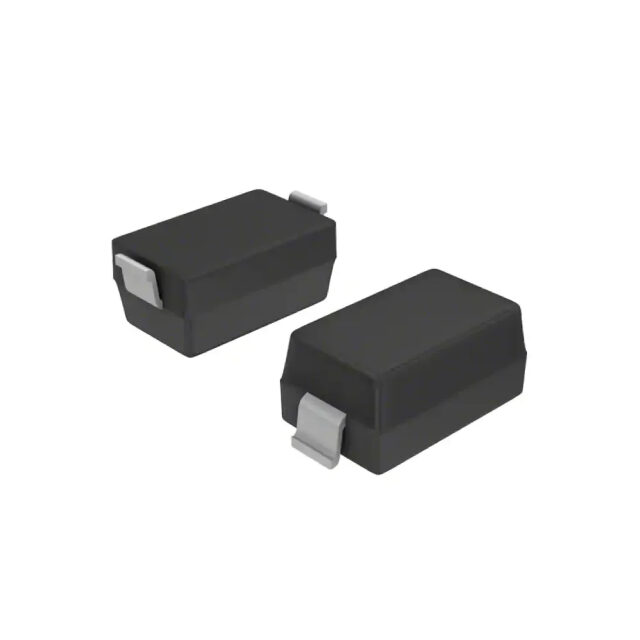

BAV21WS

$0.09

Description：250V 1.25V@200MA 50NS 250MA SOD-
Series：-
Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4587311d6ded Category: Single Diodes Brand: Shenzhen Slkormicro Semicon Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：250V 1.25V@200MA 50NS 250MA SOD-
Series：-
Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：-
Voltage - DC Reverse (Vr) (Max)：-
Current - Average Rectified (Io)：-
Voltage - Forward (Vf) (Max) @ If：-
Speed：-
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：-
Capacitance @ Vr, F：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Operating Temperature - Junction：-
Grade：-
Qualification：-

Download product information

BAV21WS

Overview

The BAV21WS is a surface mount fast switching diode manufactured by Shenzhen Slkormicro Semicon Co., Ltd. It is designed for high-speed electronic applications requiring rapid response times. The component features a single diode configuration housed in a compact surface mount package, suitable for automated assembly processes. It complies with RoHS3 directives and holds a Moisture Sensitivity Level (MSL) of 1, indicating unlimited floor life under standard conditions. This device serves as a modern alternative to through-hole variants, offering improved PCB space efficiency while maintaining robust switching performance characteristics.

Feature Summary

Surface mount construction for automated assembly
Fast switching capability for high-speed circuits
RoHS3 compliant environmental classification

Applications

High-speed signal switching circuits
General purpose rectification in surface mount designs
Clamping and protection in fast digital logic interfaces

Procurement Notes

Verify the manufacturer designation on the component marking, as multiple vendors produce the BAV21WS part number. Confirm that the specific batch meets RoHS3 requirements if strict environmental compliance is mandated for the final assembly. Ensure the packaging format matches the reflow soldering profile of the production line. Cross-reference the datasheet from the specific supplier to confirm pinout compatibility and thermal ratings before integration into the design.

Selection Notes

Select this component when a surface mount form factor is required for fast switching applications. It is appropriate for designs replacing older through-hole diodes where board space is limited. Consider the thermal management capabilities of the chosen package type during layout. Verify that the reverse voltage and current ratings of the specific supplier's version meet the circuit's peak operating conditions to ensure long-term reliability.

Part Context

Shenzhen Slkormicro Semicon Co., Ltd. produces discrete semiconductor devices including diodes and power components. The company focuses on silicon carbide technologies and general-purpose analog chips. The BAV21WS falls within their portfolio of surface mount switching diodes, catering to industries requiring reliable, small-form-factor components for consumer and industrial electronics.
