BAV70W

Overview

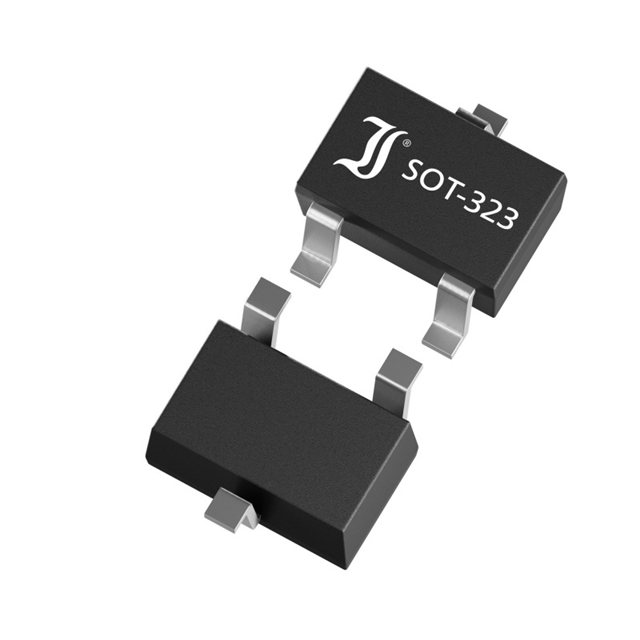

The Diotec Semiconductor BAV70W is a small signal switching diode array featuring two common cathode silicon junctions in an SOT-323 surface-mount package. It provides a repetitive peak reverse voltage of 100 V and supports a maximum forward current of 150 mA per diode under single-loaded conditions. The device exhibits a reverse recovery time of less than 4 ns, ensuring high-speed performance. Power dissipation is rated at 200 mW, with a maximum junction temperature range spanning from -55°C to +150°C.

Feature Summary

• Extremely fast switching speed suitable for high-frequency applications
• Low junction capacitance minimizing signal distortion
• Low leakage current enhancing circuit efficiency

Applications

• High-speed signal processing circuits
• General-purpose rectifying tasks
• Commercial and industrial electronic systems

Procurement Notes

Verify the specific suffix designation when ordering, as variants such as -Q or -AQ indicate AEC-Q101 compliance or qualification respectively. Confirm that the standard commercial/industrial grade meets your reliability requirements. Ensure compatibility with RoHS directives and REACH regulations during procurement. Validate packaging specifications against your assembly line needs.

Selection Notes

Select this component for designs requiring rapid switching capabilities within a compact footprint. Consider the 100 V reverse voltage rating for appropriate signal handling. Evaluate thermal management requirements given the 200 mW power dissipation limit. Compare junction capacitance values against other series options if low-capacitance performance is critical for your specific application frequency.

Part Context

This part belongs to the BAS16W, BAW56W, BAV70W, BAV99W, and BAV199W family of SMD small signal diodes manufactured by Diotec Semiconductor. These components share similar mechanical dimensions and general switching characteristics but differ in internal configurations and specific electrical ratings. The family serves as a versatile solution for various discrete semiconductor needs in modern electronics.

Replacement Considerations

BAV70W/-Q/-AQ

FAQ

What is the internal configuration of the BAV70W?

The BAV70W contains two silicon diodes arranged in a common cathode configuration within a single SOT-323 package.

Does the BAV70W support automotive standards?

Standard versions are for commercial/industrial use. Variants with suffixes -Q (compliant) or -AQ (qualified) meet AEC-Q101 automotive standards.

What is the maximum operating junction temperature?

The maximum junction temperature (Tj) for the BAV70W is +150°C.
