Product Detailed Parameters
- Description：DIODE ARRAY GP 70V 215MA SOT23
- Series：-
- Mfr：ANBON SEMICONDUCTOR (INT'L) LIMITED
- Package：Tape & Reel (TR),Cut Tape (CT)
- Diode Configuration：1 Pair Series Connection
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：70 V
- Current - Average Rectified (Io) (per Diode)：215mA
- Voltage - Forward (Vf) (Max) @ If：1.25 V @ 150 mA
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：6 ns
- Current - Reverse Leakage @ Vr：2.5 µA @ 70 V
- Operating Temperature - Junction：-55°C ~ 150°C
- Mounting Type：Surface Mount
- Package / Case：TO-236-3, SC-59, SOT-23-3
- Supplier Device Package：SOT-23
- Grade：-
- Qualification：-
Download product information
Overview

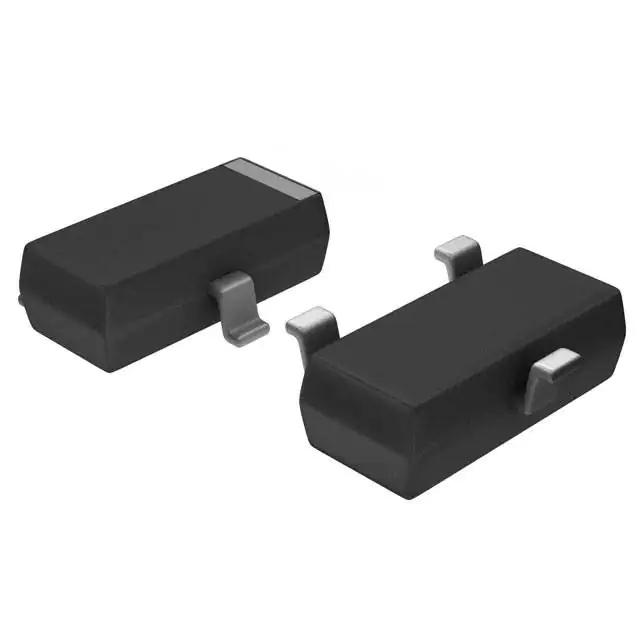

The BAV99 is a dual series high-speed switching diode manufactured by ANBON SEMICONDUCTOR (INT'L) LIMITED. It features two independent silicon junction diodes connected in series within a single surface-mount package. The device is designed for applications requiring fast switching speeds and low capacitance. Key electrical parameters include a maximum reverse voltage of 70V, a forward current rating of 200mA, and a typical reverse recovery time of 4ns. The component operates within a temperature range from -55°C to +150°C.
Feature Summary
- Dual series configuration providing two independent switching functions in one compact package
- High-speed switching capability with minimal reverse recovery time
- Low junction capacitance for efficient signal integrity
- Halogen-free construction compliant with environmental standards
Applications
- High-speed signal switching circuits
- General-purpose rectification tasks
- Reverse polarity protection mechanisms
Procurement Notes
Verify the manufacturer designation on the datasheet header to confirm ANBON SEMICONDUCTOR (INT'L) LIMITED as the source. Ensure the document version matches the provided reference date. Cross-check pinout configurations against standard SOT-23 layouts if specific footprint details are required for PCB design. Confirm halogen-free status through official compliance declarations.
Selection Notes
Select this component when space constraints require dual diode functionality in a small surface-mount form factor. Consider its high-speed characteristics for digital logic interfaces or RF applications. Evaluate the 70V reverse voltage limit against circuit peak inverse voltage requirements. Verify thermal management needs based on the specified operating temperature range.
Part Context
This part belongs to a family of ultra-fast switching diodes including BAL99, BAW56, and BAV70 variants. These components share similar packaging technologies but differ in specific voltage and current ratings. The BAV99 specifically targets general-purpose high-speed switching needs within consumer electronics and industrial control systems.
Replacement Considerations
BAV99W from Nexperia serves as a verified alternative. Both parts offer dual series switching capabilities in SMD packages. Verify pin compatibility and electrical parameter alignment before substitution.
