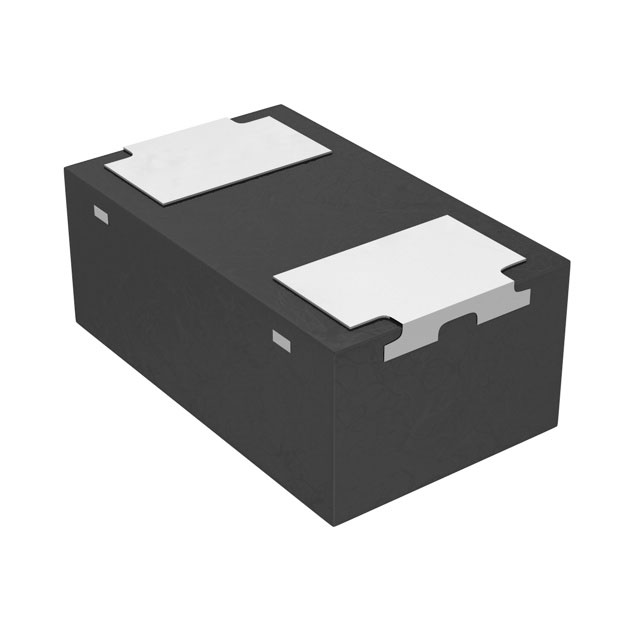

BB178LX,315

Description：DIODE UHF VAR CAP 32V SOD882T
Series：-

SKU:e328d0bc4a6d Category: Variable Capacitance (Varicaps, Varactors) Brand: NXP USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE UHF VAR CAP 32V SOD882T
Series：-
Mfr：NXP USA Inc.
Package：Tape & Reel (TR)
Capacitance @ Vr, F：2.75pF @ 28V, 1MHz
Capacitance Ratio：15
Capacitance Ratio Condition：C1/C28
Voltage - Peak Reverse (Max)：32 V
Diode Type：Single
Q @ Vr, F：-
Operating Temperature：-55°C ~ 125°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Package / Case：SOD-882
Supplier Device Package：SOD2

Download product information

BB178LX,315

Overview

The BB178LX,315 is a varactor diode manufactured by NXP Semiconductors. It is designed for RF tuning applications and utilizes an SMD/SMT installation style within the SC-79-2 package (SOT323). The device operates with a reverse voltage of 32 V and features a capacitance of 34.65 pF. It supports a minimum tuning ratio of 13.5 under test conditions of 1 V / 28 V. The component functions as a single configuration unit and is supplied in reel packaging. It is rated for operation between -55 °C and +125 °C.

Feature Summary

Provides variable capacitance for RF circuit tuning
Supports surface mount integration via compact SC-79-2 package
Operates across extended industrial temperature ranges

Applications

RF front-end tuning circuits
Voltage-controlled oscillator (VCO) designs
Frequency synthesizer modules

Procurement Notes

Verify the specific ordering suffix to confirm tape-and-reel quantities and RoHS compliance status. Confirm current availability through authorized distributors as lifecycle status may vary. Ensure the SC-79-2 footprint matches the target PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when a single varactor diode with a 32 V reverse voltage rating is required for RF tuning. Verify that the 34.65 pF capacitance value aligns with the target circuit design specifications. Ensure the operating environment remains within the specified -55 °C to +125 °C temperature range for reliable performance.

Part Context

This part belongs to the NXP varactor diode family, specifically engineered for radio frequency applications. It serves as a key passive component for adjusting resonance frequencies in electronic circuits. The BB178 series offers standardized performance metrics suitable for mass production in consumer and industrial electronics.

Replacement Considerations

Check for direct substitutes with identical SC-79-2 footprints and matching electrical parameters. Verify compatibility with existing biasing networks if replacing in active designs.
