BCV61C-TP

Overview

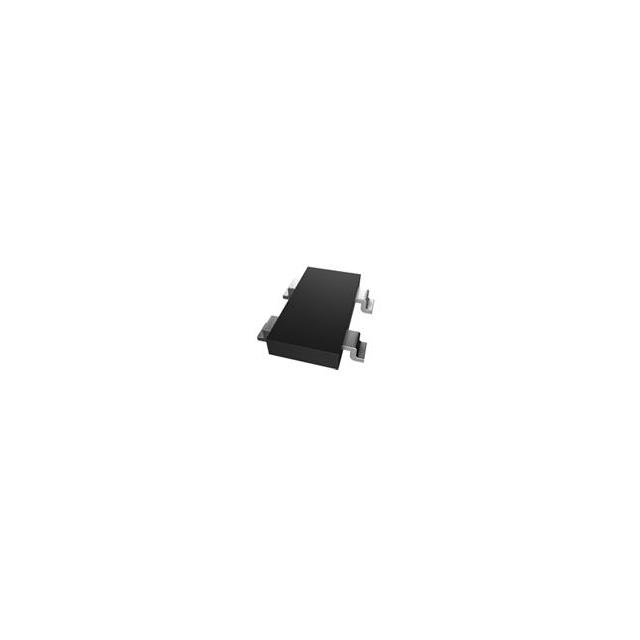

The BCV61C-TP is a matched pair NPN double transistor manufactured by Micro Commercial Components. It features a low collector current of 100 mA and a maximum voltage rating of 30 V. The device provides high DC current gain (hFE) with tight matching tolerances between the two transistors, ensuring consistent performance in differential applications. Designed for general-purpose use, it operates within a temperature range of -55°C to +150°C. The component is housed in an SOT-23 surface-mount package, facilitating automated assembly and compact circuit board layouts.

Feature Summary

• Matched pairs ensure precise tracking and symmetry for differential signal processing
• Low voltage and current ratings suitable for sensitive control circuits
• High DC current gain with guaranteed hFE grouping for accuracy

Applications

• Current mirrors requiring high precision
• Temperature-independent working point circuits
• Differential amplifier stages

Procurement Notes

Verify the manufacturer marking on the component body matches MCC specifications. Confirm the tape and reel or cut tape packaging details align with production requirements. Check for AEC-Q101 qualification status if automotive application compliance is mandatory. Ensure the date code is recent to prevent solderability issues during assembly.

Selection Notes

Select this component when matched transistor characteristics are critical for circuit balance. Compare the specific hFE binning requirements against the datasheet limits. Consider the SOT-23 thermal dissipation capabilities relative to the expected power load. Verify that the 30 V rating exceeds the maximum operating voltage in the target design.

Part Context

This part belongs to the BCV61 series of NPN double transistors. It shares functional similarities with other matched pair devices but is distinguished by its specific voltage and current ratings. The 'TP' suffix typically indicates a specific tape and reel packaging option provided by Micro Commercial Components for surface-mount technology integration.

Replacement Considerations

Direct substitutes include the standard BCV61C from Nexperia, which shares identical electrical characteristics and pinout. Other compatible matched NPN pairs with similar 30 V ratings and SOT-23 packaging may be used if hFE matching tolerances are verified against the original design requirements.
